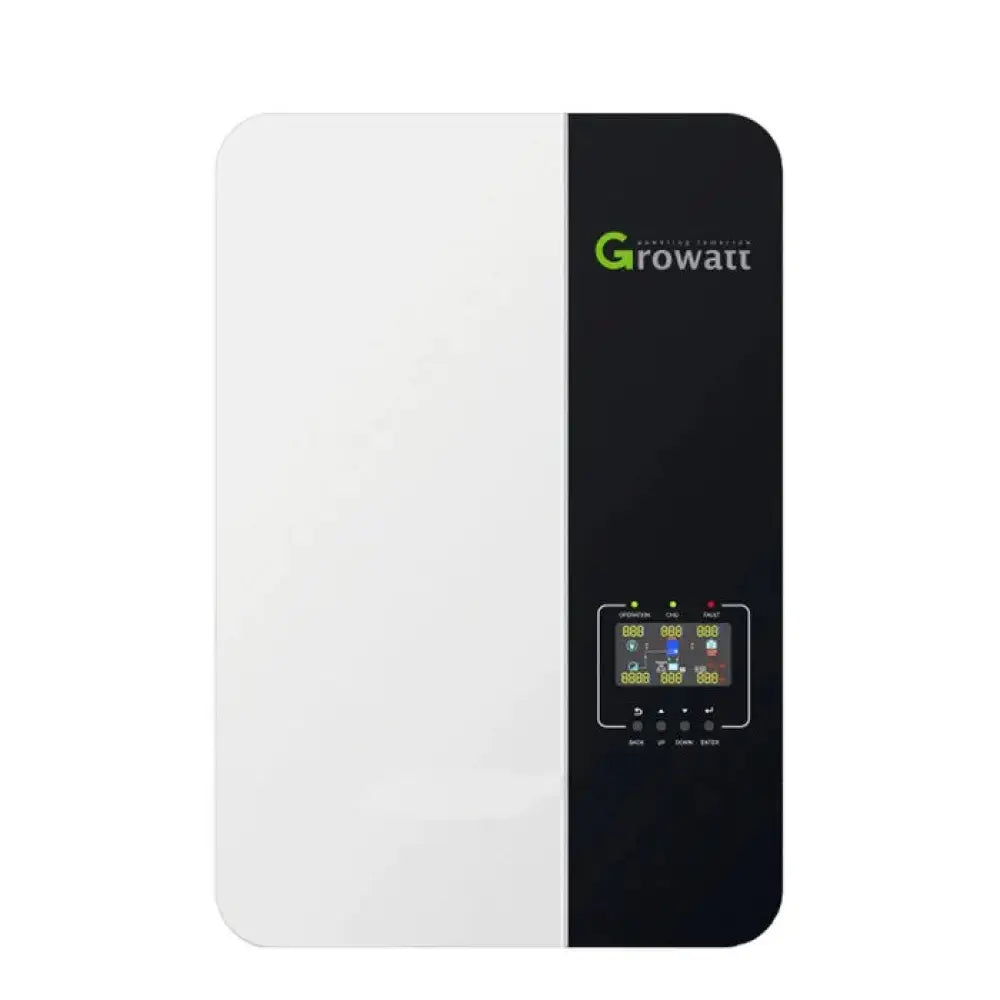

Growatt 48V 5KW Hybrid Inverter Including WIFI SPF 5000 ES

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

Features: This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. Parallel operation up to 6 unit (only with battery connected)

Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Use with Batteries or without.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.

General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC � 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms � 20ms.

Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC � 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

• Protection degree: IP20.
• Height: 330 x 485 x 135mm.
• Weight: 12 kg
• Warranties: 5 Years
  All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
