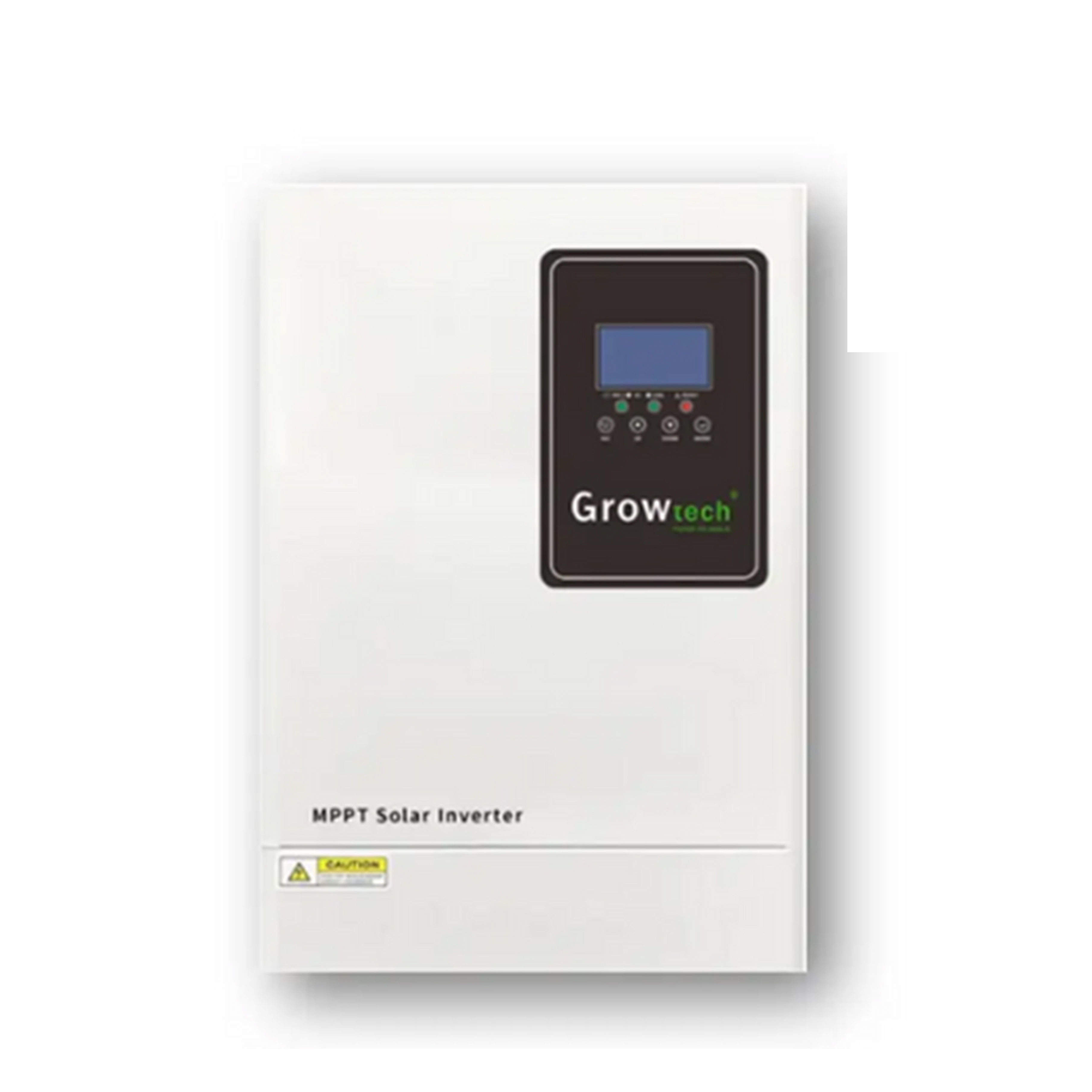

Growtech 5,5kw Inverter 100a Mppt 48v

� Pure sine wave Output power factor 1.0 � High PV input voltage range 500Vdc Max � Built-in MPPT solar charge controller � Detachable dust cover for harsh environment Support multiple output priority: UTL, SOL, SBU, SUB � WiFi remote monitoring optional Capable to work without battery Battery equalization function to optimize battery performance and extend lifecycle Please note that is a Single Phase Non Parallel Inverter System / Wi-Fi Dongle Is Not Included And Currently Not Available Specification �Stock Code SOLGTMP5548 �Growtech 5500VA 48VDC Pure Sine Wave Solar Inverter �Product Type Single Phase Non Parallel Inverter System �Output Power factor 1.0 �DC Input 48VDC 127A �DC Output 54VDC �AC Input Voltage 220-230VAC 40A �AC Output Power 5.5KVA /5000W �Surge Power Voltage 11000VA �Maximum Input Current 60A �Maximum Charge Current (PV+AC) 100A �Nominal Operating Frequency:50/60HZ 23.9A �Battery Voltage: 48VDC �Battery Floating Voltage 54VDC �Battery Overcharge Protection 63VDC �Charging Method CC /CV �Maximum Peak Efficiency Battery to Inverter 93% �Maximum Peak Efficiency Solar PV to Inverter 97% �Solar PV Charger Type MPPT �Maximum Solar PV Array Power 5500W �Maximum Solar PV Input Current 18A �Maximum Solar PV Charge Current 100A �Minimum Solar PV DC Voltage Range 120VDC-450VDC �Maximum Solar PV DC High Voltage 500VDC �Maximum 100A MPPT Solar Charge Controller �Communication Interface RS232 �Dimensions DxWxH 438x295x105 �Weight 9.0kg � 1-Year Warranty Warranties:�All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
