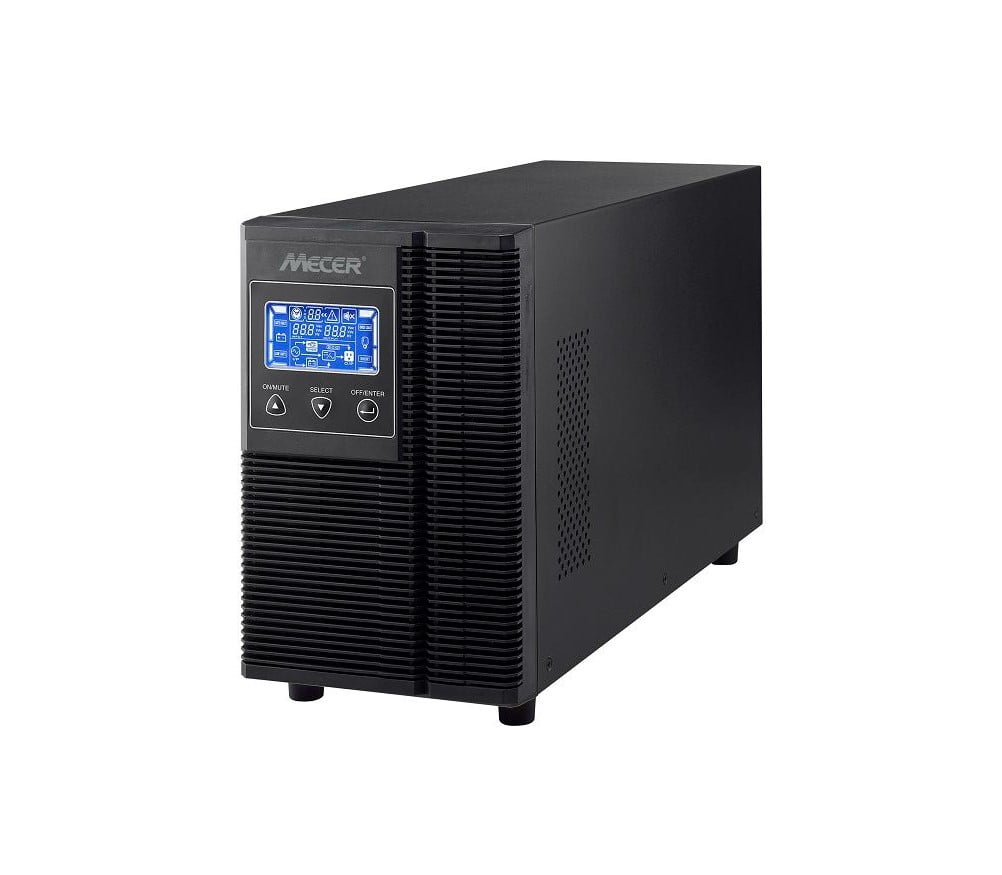

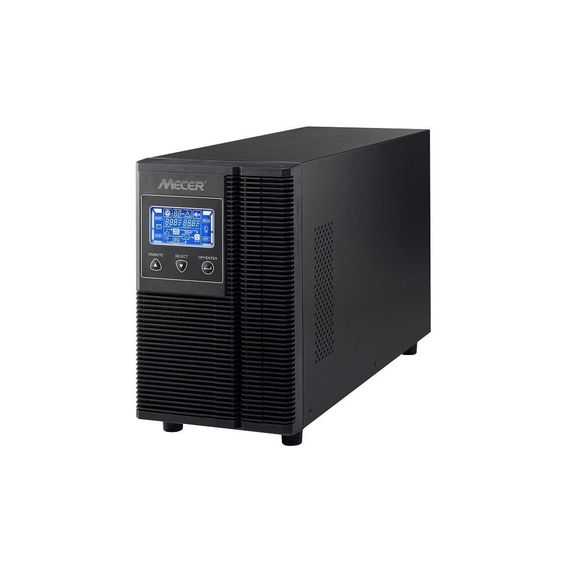

MECER Winner Pro 2000VA (2000VA/1600W) On-Line Tower UPS (Uninterruptable Power Supply)

\n \nFeatures \nTrue double-conversion online UPS \nWide input voltage range (110-300 VAC) \nInput power factor correction 0.99 \nOutput power factor 0.8 \nConverter mode available \nECO mode operation for energy saving (only available for 1-3KVA) \nGenerator compatible \nSmart SNMP works well with either USB or RS-232 together (SNMP NETWORK CARD need to be purchased separately) \n \nBack Time (Minutes) \n25% Load 400W: 21 minutes \n50% Load 800W: 7 minutes \n75% Load 1200W: 4 minutes \n100% Load 1600W: 2 minutes \n \nNote: \nData given are the average values, not the minimum values. \nA UPS is not designed to provide continuous power, merely a window period that allows a computer or other user to finalise the work at hand and shut down. It's ability to do this is dependent on the number of devices connected to the UPS. \nTo establish what you can and cannot connect, calculate the total wattage you need to supply and ensure that the UPS you purchase meets that requirement. \n \nSpecifications \n \nColour: Black \nPhase: Single phase with ground \nCapacity: 2000 VA / 1600 W \n \nINPUT \nVoltage Range \nLow Line Transfer: 160 VAC/140 VAC/120 VAC/110 VAC 5% (Ambient Temp.(based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) \nLow Line Comeback: 175 VAC /155 VAC/ 135 VAC /125 VAC 5 % (Ambient Temp.(based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) \nHigh Line Transfer: 300 VAC 5 % \nHigh Line Comeback: 290 VAC 5 % \nFrequency Range: 40Hz ~ 70 Hz \nPower Factor: 0.99 @ nominal voltage \n \nOUTPUT \nOutput Voltage: 200/208/220/230/240 VAC \nAC Voltage Regulation (Batt. Mode): 1% \nFrequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz \nFrequency Range (Batt. Mode): 50 Hz 0.25 Hz or 60Hz 0.3 Hz \nCurrent Crest Ratio: 3:1 \nHarmonic Distortion: 3 % THD (Linear Load), 6% THD (non-linear load) \n \nTransfer Time \nAC Mode to Batt. Mode: Zero \nInverter to Bypass: 4 ms (Typical) \nWaveform (Batt. Mode): Pure Sinewave \n \nEFFICIENCY \nAC Mode: 89% \nBattery Mode: 87% \n \nBATTERY \nBattery Type: 12 V / 9 Ah \nNumbers: 4 \nTypical Recharge Time: 4 hours recover to 90% capacity \nCharging Voltage: 54.7 VDC 1% \n \nINDICATORS \nLCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions \n \nALARM \nBattery Mode: Sounding every 4 seconds \nLow Battery: Sounding every second \nOverload: Sounding twice every second \nFault: Continuously sounding \n \nPHYSICAL \nDimension, D x W x H (mm): 397 x 145 x 220 \nNet Weight (kgs): 17 \n \nENVIRONMENT \nHumidity: 20-90 % RH @ 0- 40 C (non-condensing) \nNoise Level: Less than 50dB @ 1 Meter \n \nMANAGEMENT \nSmart RS-232/USB: Supports Windows 2000/2003/XP/Vista/ 2008, Windows? 7/8, Linux, Unix, and MAC \n \nOptional SNMP (SNMP NETWORK CARD need to be purchased separately): Power management from SNMP manager and web browser \n \nNOTE 1: Derate to 80% of capacity in CVCF mode or when the output voltage is adjusted to 200/208VAC. \n \nNOTE 2: If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m \n \nWhat's in the box \n1 x UPS Unit \n1 x VGA Cable \n2 x MALE TO FEMALE EXTENSION POWER CORD IEC C13-C14 (From UPS to PC) \n1 x USB Cable (From UPS to PC) \n1 x Driver Disk \n1 x User Guide \n1 x Dedicated Power Cord - Kettle Plug to RED 3 pin (A009) \n \n
