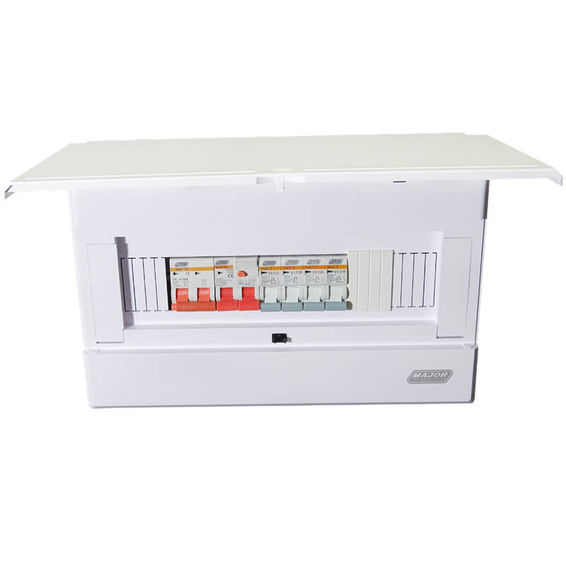

12 Way Distribution Board (Surface Mount) (VBE12ASSM) - VETi

Major Tech offers high quality flame retardant din rail distribution boards which are available in elegant flush mount or surface mount options, intended for indoor usage where aesthetics and ease of use are paramount. Features : Overall Dimensions : 323mm x 210mm x 97mm Heavy duty powder coated iron tray Circuit labels included Adjustable Din rail & front cover to ensure level installation Tested and approved to EN60947-1 CE Certified Din rail connection according to EN50022 Supplied with earth / neutral bar 4 x 20mm knock outs, 2 x 30mm knock outs, 2 x 75mm (L) x 30mm(H) knock outs & 1 x 200mm(L) x 25mm(H) knock out Flat elegant design MCB’s are C Curve thermal magnetic MCB’s are tested and approved to IEC60947-2 +VC8036 +SANS556-1 RCCB has been tested and approved to VC8035 +SANS 556-2-3 +IEC61008-1 Components : 1 x VBM1114SM (11-14 Surface Mount Distribution Board) 1 x VE2P63 (63A Double Pole RCCB) 1 x V3C1P32 (32A 3Ka Single Pole MCB) 2 x V3C1P20 (20A 3kA Single Pole MCB) 2 x V3C1P10 (10A 3kA Single Pole MCB) 1 x VBB6 (6 Way DB Blanks)
