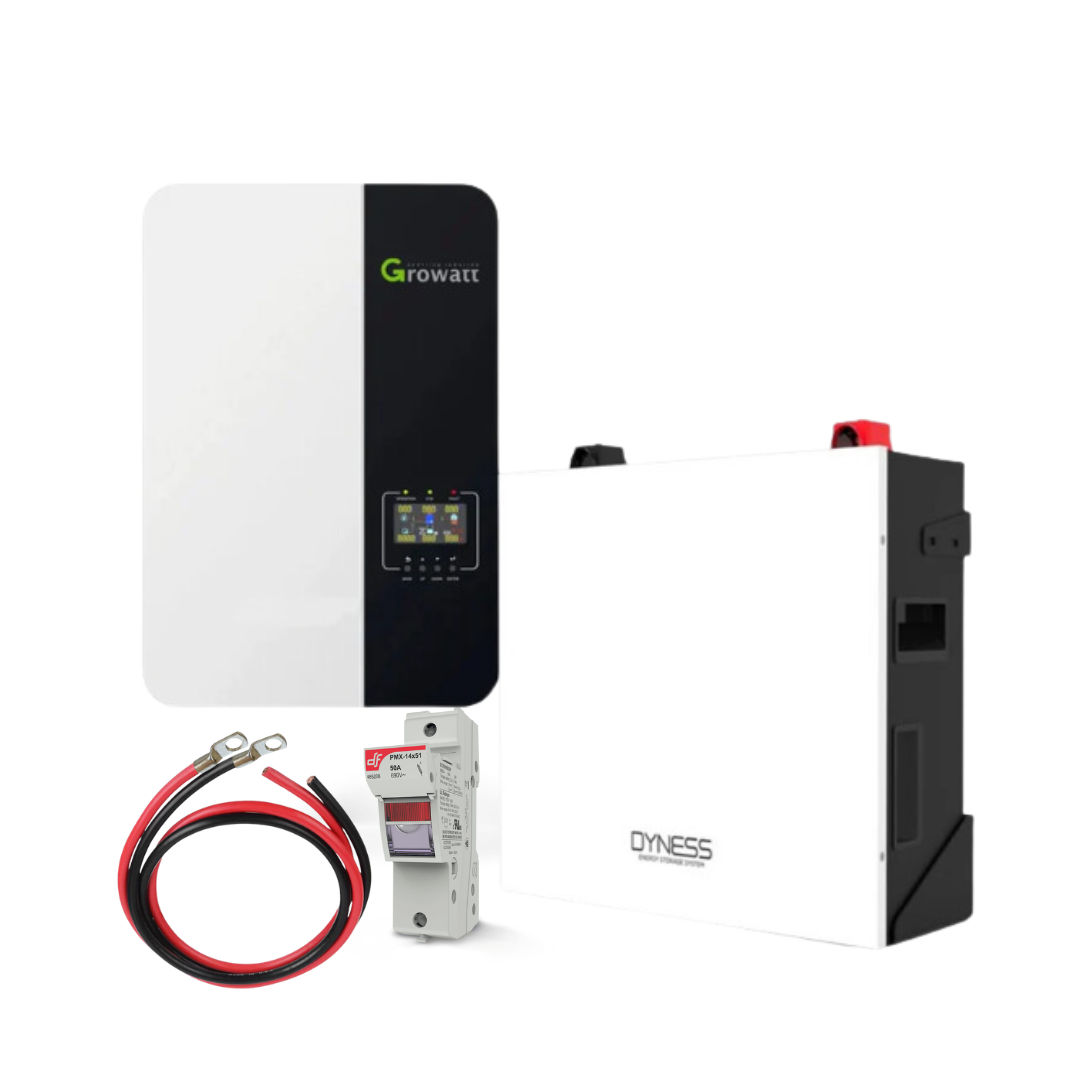

5kW Growatt Offgrid Inverter | 4.8kWh Dyness 48V Lithium Battery (A48100)

5kW Growatt Offgrid Inverter: 5Kw Growatt SPF 5000 ES off-grid is an off-grid Inverter for backup power and self-consumption application, maximum power PV input voltage up to 450VDC. This is a multifunctional off-grid solar inverter, integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications. 5Kw Growatt SPF 5000 ES off-grid is an off-grid inverter that is perfect for Off-Grid and Backup applications. It is designed to operate at a low voltage range, with high efficiency and excellent performance. Features: - The integrated MPPT charge controller - It can work with a battery or without a battery - Maximum PV input voltage up to 450VDC - Configurable grid or solar input priority - Optional WIFI/ GPRS remote monitoring - Parallel for scalability Specifications: Inverter Output Rated Power: 5000VA/ 5000W Parallel Capability: Yes, 6 units AC Voltage Regulation (Battery Mode): 230VAC 5% at 50/60Hz Surge Power: 10000VA Efficiency (Peak): 93% Waveform: Pure sine wave Pure sine wave Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances) SOLAR Charger Maximum PV Array Power: 5500W MPPT Range at Operating Voltage 120VDC ~ 430VDC Maximum PV Array Open Circuit Voltage: 450VDC Maximum Solar Charge Current: 100A Maximum Efficiency: 97% AC Charger Charge Current: 80A AC Input Voltage: 230 VAC Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) Frequency Range 50Hz/60Hz (Auto-sensing) Physical Dimension (D/W/H) in mm: 485mm/330mm/135mm Net Weight (kgs): 12 OPERATING ENVIRONMENT Humidity: 5% to 95% Relative Humidity(Non-condensing) Operating Temperature: 0C - 55C Storage Temperature: -15C - 60C 4.8kWh Dyness 48V Battery (A48100): The Dyness A48100,is a breakthrough in renewable energy storage. The A48100 is a 4.8kWh Lithium-ion Battery Module pack that's engineered for remarkable reliability and performance. With a built-in Battery Management System (BMS) that safeguards against overcharging, over-discharging, and short circuits, this powerhouse of a battery delivers continuous 48V output power. Say hello to energy independence with the Dyness A48100. A Revolution in Renewable Energy The Dyness A48100 isn't just a battery; it's a gateway to a greener, more sustainable future. Designed to partner seamlessly with renewable energy sources like solar panels, this lithium battery stores the electricity generated during the day and makes it available when you need it most. No more reliance on the National Grid - with the Dyness A48100, you're in control of your power. Efficiency Meets Portability The A48100 is not only powerful but also practical. It's lightweight and occupies minimal space, making it perfect for projects that require easy transport and minimal installation space. You won't find a more compact and portable energy storage solution anywhere else. Battery Specifications: Voltage: 48V Nominal Capacity: 100Ah Rated Energy: 4,800Wh Cycle Life: 6,000 Cycles (25 C, 0.5C Rate, 90% DOD, EOL 60%) Rated Discharge Current: 30A Maximum Continuous Discharge Current: 100A Maximum Discharge Current: 120A (3S) Rated Charging Current: 30A Maximum Continuous Charging Current: 100A Lower Limit of Discharge Voltage: 42 0.1V Operating Temperature: Recharge: 0 C to +55 C Discharge: -20 C to +55 C Working Humidity: 5% to 85% RH Storage Temperature: -10 C to +35 C What's in the box: 1 x 5kW Growatt Offgrid Inverter 1 x 4.8kWh Dyness 48V Battery (A48100) 1 x 125A Fuse 1 x Fuse Holder 2 x Battery Cables
