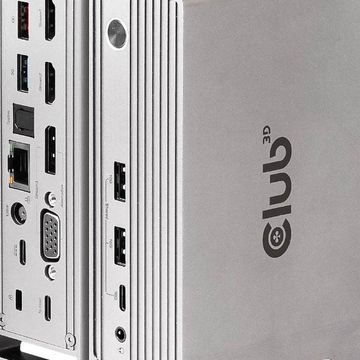

Club3D Type-C Gen2 Smart PD Triple Display DP1.4 Universal Port Replicator with 120W PSU (CSV-1568)

The Club3D CSV-1568 USB Gen2 Type-C Triple Display DP Alt mode plus Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2x Type-A 10G, 1x Type-C 10G, 1x Type-A 5G) for data transmission, 1x Type-A smart charging port for quick charging, 1x Gigabit Ethernet for super fast Ethernet, 2x audio ports (3.5mm audio, Toslink) for enjoying music. This dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode 1.4/1.2 supported Type-C and Thunderbolt 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

FEATURES:

  • Supports Output through MST up to 3 displays (2x HDMI plus VGA or 2x HDMI plus DisplayPort). DisplayPort and VGA are alternate (DisplaPort has priority over VGA)
  • When 3 displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max. 4K @60Hz, DisplayPort max. 4K @60Hz, VGA max. 1920 x 1200 @60Hz
  • DisplayPort and HDMI supports RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2, deep colour 8/10-bit, HDR, HDCP2.2 & 1.4
  • DisplayPort supports DP++ which enables to connect a passive DisplayPort to HDMI port to connect HDMI display
  • Gigabit Ethernet
  • USB3.2 Gen2 with max. 10Gbps data transfer
  • Digital audio with max. 96KHz/24-bit sampling rate
  • Type-C female supports max. 100W PD Charging with fast role swap of PD3.0, supports smart power which allows to distribute power according to actual consumption of the connected devices
  • Max. 120W power supply from DC Adapter, supports smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
Product label
Club3D Type-C Gen2 Smart Pd Triple Display Dp1.4 Universal Port Replicator With 120W Psu (Csv-1568)
SKU
5d9beba0
Pargo Available
No
Ean code
2000111133178
Gross weight (kg)
41.00
Product width in cm
1.00
Product depth in cm
24.00
Product height in cm
4.00
