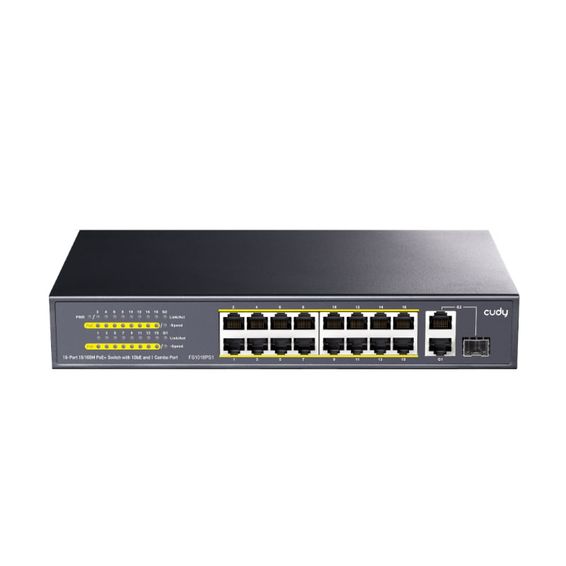

The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance.\nThe 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.\nUsed for many applications the Cudy FS1018PS1 works with IP Cameras for home, office or small businesses. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to ensure stable product operation.\nFEATURES:\n\nProvides 16 PoE injectors and total 210W power;\nInput: AC100~240 V Output: DC50V 210W;\nHigh back-plane bandwidth 7.2Gbps;\nSurge protection for power port and data pots\nIdeal for installations of 8 PoE devices\n\nSPECIFICATIONS:\n\nPower\n\nPower Supply: Built-in power supply\nVoltage Range: AC100~240V\nConsumption: 190W for 16 PoE\n\n\nEthernet\n\nSpeed\n\n1~16 Port: 10/100/Mbps\nG1(combo):10/100/1000Mbps & 1.25bps\nG2:10/100/1000Mbps\n\n\nTransmission Distance\n\n100Meter(328ft)for RJ-45\nThe distance is determined by the optical module\nThe optical module is optional\n\n\n\n\nNetwork Switch:\nEthernet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at\nSwitching Capacity: 7.2G\nTransfer Rate:\n\n14880 pps for 10Mbps\n148800 pps for 100Mbps\n1488000 pps for 1000Mbps\n\n\nMAC Adsress: 4K MAC sddress table\nLink/ACT:\n\nOn(Green): The port is connecting\nBlinks: The port is receiving or transmitting data.\nOff: The port is not linked successfully with the device\n\n\nPOE\n\nOn(Orange): PD is connected\nOff: No PD is connected or power forwarding fails\nPoE Pin Assignment: V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)\n\n\nColour: Grey\nProduct Dimensions: 28 x 18 x 4.4 cm\n\nWHAT'S IN THE BOX:\n\nCudy FS1018PS1 18-Port 10/100M PoE+ Switch - Grey x1\nPower Adapter x1\n\n
