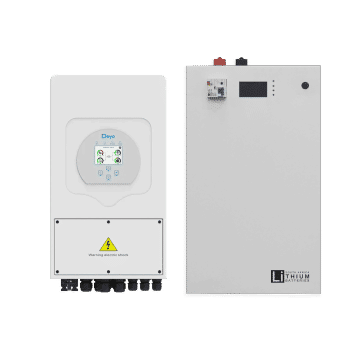

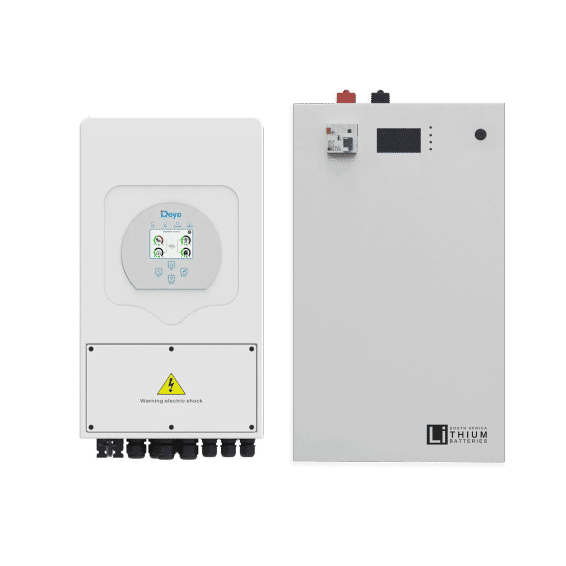

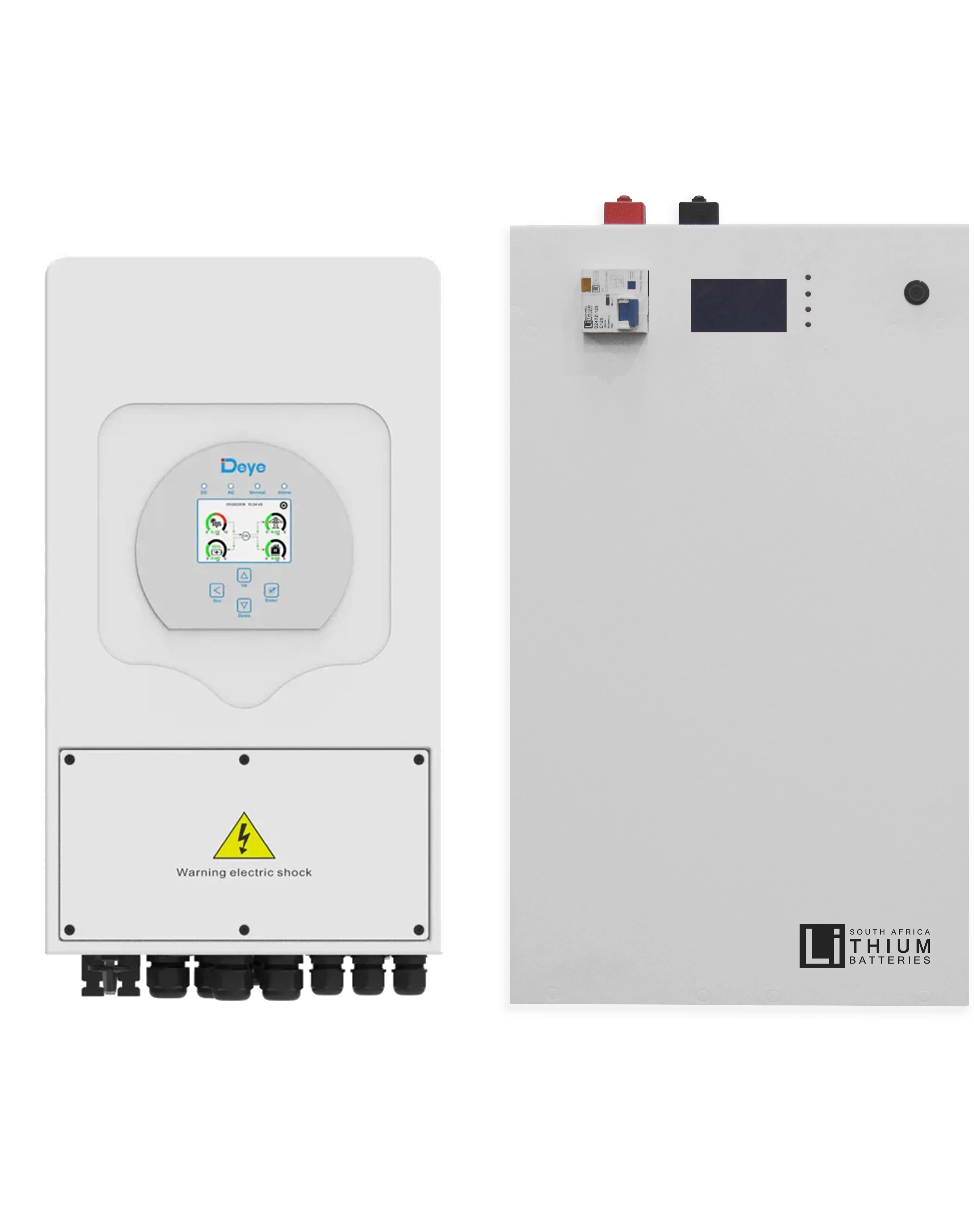

Deye 5kW Hybrid Inverter and 5.3kWh Wall Mount LBSA Battery Combo WHITE
Main image
Click to view image in fullscreen
![]()
Product Images
Main image
Click to view image in fullscreen
![]()
SKU
64aa5152
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Product Information
TECHNICAL SPECIFICATIONS
DOWNLOAD INVERTER MANUAL
DOWNLOAD BATTERY MANUAL
INVERTER SPECS
...
More Information
Show more information
R 38,707.95
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest
free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
- You must be over 18 years old.
- You must have a valid South African ID
- You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Standard Delivery Fees Apply
Qualifies for
Free Delivery
Free Delivery On Orders Over
R4000.00
Deye 5kW Hybrid Inverter and 5.3kWh Wall Mount LBSA Battery Combo WHITE
SKU 64aa5152
R 38,707.95
Experts Recommend Buying This Together
-
Deye 5kW Hybrid Inverter and 5.3kWh Wall Mount LBSA Battery Combo WHITER 38,707 .95
-
..
-
..
-
..
Bundle Total:
Bundle Savings:
INVERTER SPECS
| DEYE Solar INVERTER 5K Single Phase | |
|---|---|
| Battery Input Data | |
| Battery Type | Lead-acid or lithium-ion |
| Battery Voltage Range (V) | 40V- 60V |
| Max. Charging Current (A) | 120A |
| NMax. Discharging Current (A) | 120A |
| Charging Curve | 3 Stages/ equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 6500W |
| PV Input Voltage (V) | 370V(100V~500V) |
| MPPT Range (V) | 125~425V |
| Full Load DC Voltage Range | 240~425V |
| Start-up Voltage | <150V |
| PV Input Current (A) | 11A + 11A |
| No. of MPPT Trackers | 2 |
| No. of Strings per MPPT | 1/1 |
| AC Output Data | |
| Related AC Output and UPS Power (W) | 5000W |
| Max. AC Output Power(W) | 5500W |
| Peak Power (off-grid) | 2 times of rated power, 10 S |
| AC Output Rated Current (A) | 21.7A |
| Max. AC Current (A) | 25A |
| Max Continuous AC Passthrough (A) | 35A |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (single phase) |
| Grid Type | Single Phase |
| Current harmonic distortion | THD <3%(Linear load) <1.5% |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro. Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
BATTERY SPECS
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity(Ah) | 104Ah |
| Nominal Power (kWh) | >5.2kWh @0.4c (tested) |
| Dimensions | 630mm*345mm*137mm |
| Weight (Kg) | 42Kg |
| Discharge Cut-offVoltage(V) | 44V |
| Charge Voltage (Bulk + Absorbtion)(V) | 56.2V |
| Max Discharge Current (A) | 100A |
| Recommended Charge Current (A) | 50A |
| Communication Interface | CAN |
| Configuration | 16S |
| Working Temperature | 0~50°C(Charge) -20~50°C(Discharge) -20~55°C(Storage) |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >80% capacity state after 4800 cycles at 0.5C, 25°C,100% DOD |
| IP Level | >IP20 |
Product label
Deye 5kW Hybrid Inverter and 5.3kWh Wall Mount LBSA Battery Combo WHITE
SKU
64aa5152
Pargo Available
No
Ean code
6009234065414
Gross weight (kg)
55.00
Product width in cm
13.70
Product depth in cm
34.50
Product height in cm
63.00
