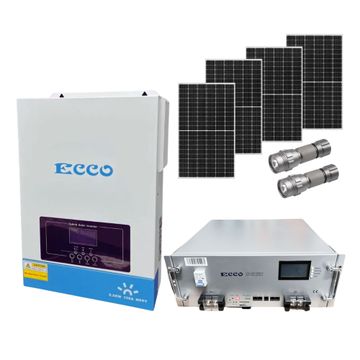

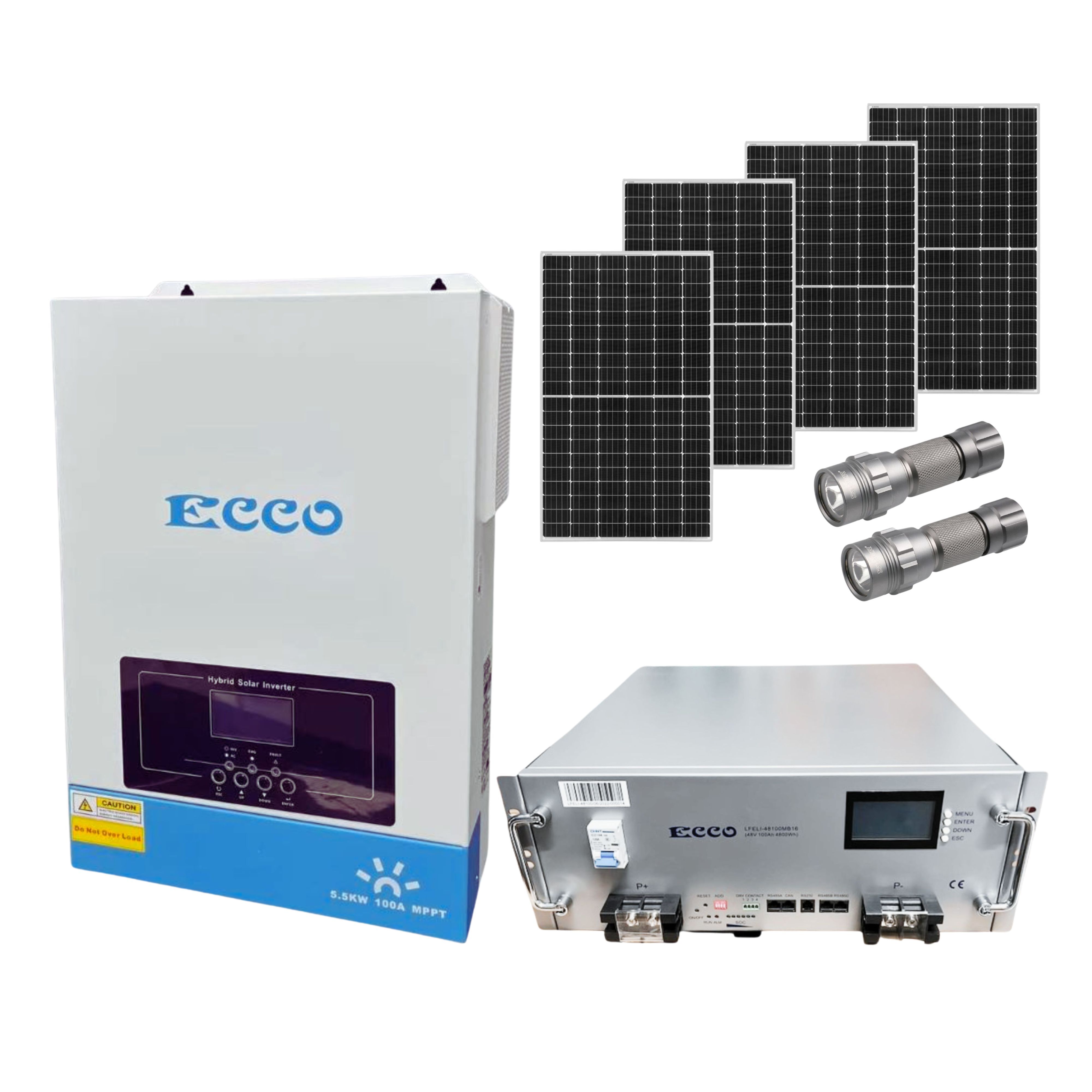

High Voltage VDC500V 5.5KVA/5500W 100A Pure Sine Wave Solar Inverter Features - Pure Sine Wave Solar Inverter - Output Power Factor 1 - High PV Input Voltage Range (120VDC - 500VDC) - Built-in 100A MPPT Solar Controller - Supports Multiple Output Priority: UTL, SOL, SBU, SUB - Parallel Operation with Up to 12 units (Parallel Version) - Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version) - Supports Wireless Parallel, Without Extra Sharing Current Cable - RS485 Communication for BMS - Wifi Monitoring - Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle Specifications: - Inverter Mode - Rated Power: 5500VA / 5500W - DC Input: 48VDC, 127A - AC Output: 230VAC, 50/60Hz, 23.9A AC Charger Mode - AC Input: 230VAC, 50/60Hz, 40A - DC Output: 54VDC - Max. Charge Current (AC): 60A Default 30A - Max. Charge Current (PV+AC): 100A - AC Output: 230VAC, 50/60Hz, 23.9A Solar Charge Mode - Max. PV Array Power: 5500W - Min. Solar Voltage: 120VDC - Max. Solar Voltage (VOC): 500VDC - Max. MPPT Charge Current: 100A Ingress Protection: IP21 (Indoor Use) Dimensions; 38 x 55 x 20 cm Weight: 9.65kg Battery Specs LFEI-51100MB16 51V 200AH Rated Capacity 100ah With Display Screen Intra system Balancing Flame retardant Automatic Over Charge Protection 20-year Design Life IP31 Class 19"" std cabinet or can be wall mounted It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results. Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations. Solar Panel Specs 580W Maximum Power Mono Solar Cell Anodized Aluminum Alloy 46.53V Operating Voltage 21.1 Module Efficiency 13.89 Amp Operating Current 49.95 Operating circuit voltage -40C - +85C Operating Temperature
