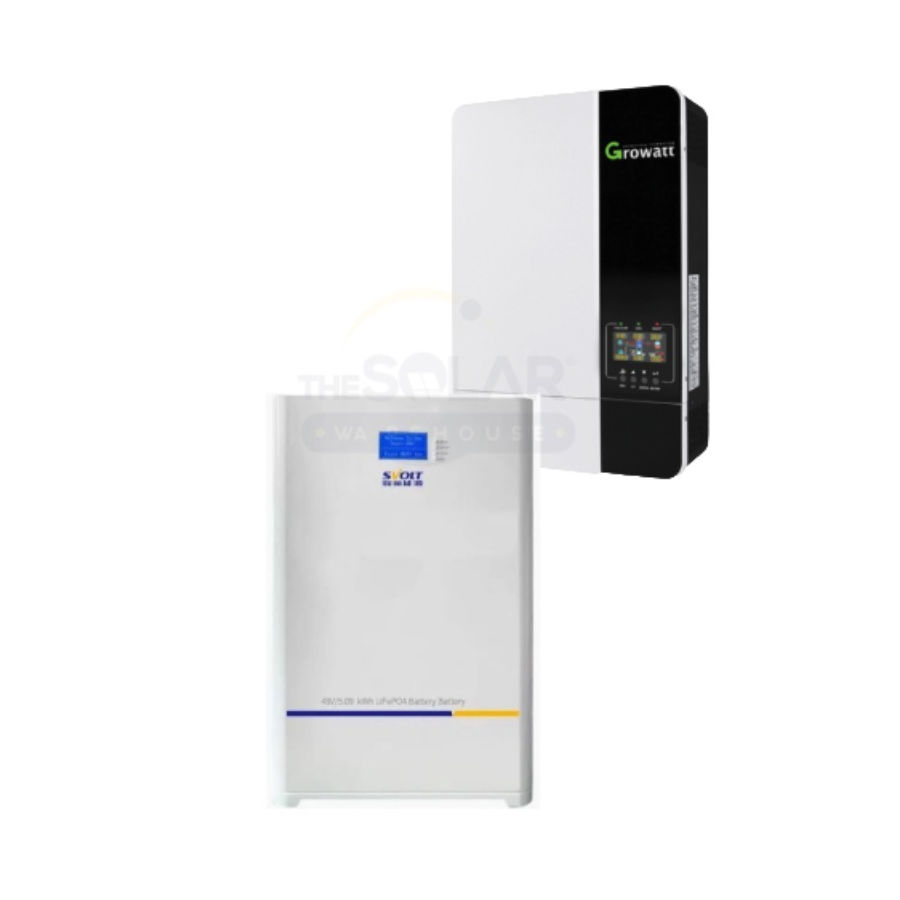

Growatt 5KVA Inverter and Battery Combo Svolt 5.09KWh Lithium Battery

Growatt : Integrated MPPT charger controller. Equalization charging function. Use with Batteries or without. Max PV input up to 450vDC. Choose grid or solar input priority. WIFI/GPRS remote monitoring. Parallel up to 6 PV & Grid Power combine if PV energy is insufficient for load. Flexible schedule for charging and discharging the batteries. Inverter Output [AC] Rated Power: 5000W. AC Voltage Regulation (Battery): 230VAC ± 5%. Surge Power: 10000VA for 5 sec. Efficiency (Peak): 93%. Waveform: Pure sine wave. Transfer Time: 10ms – 20ms. Solar Charger Maximum PV Array Power: 6000W. MPPT Range @ Operating Voltage: 120VDC – 430VDC. Maximum PV Array Open Circuit Voltage: 450vDC. Maximum Solar Charge Current: 100 A. AC Charger AC Charge Current: 80A. AC Input Voltage: 230 VAC. Selectable Voltage Range: 230 VAC. Frequency Range : 50 Hz/60 Hz (Auto sensing). Physical Protection degree: IP20. Height: 330 x 485 x 135mm. Weight: 12 kg Key Features Intelligent Off-Grid & Hybrid modes PV and AC Power can power loads simultaneously 2 x MPPTs with a wide input voltage range. BMS communication to most leading brands of Batteries (See List) Free monitoring via the app and remote upgrades. Single or unbalanced three phase Parallel up to 10 units. Independent generator interface. PV INPUT: Normal operating voltage:240Vdc Vmax PV:500Vdc PV input voltage range:90-500Vdc Imax PV:27A Full load MPPT range: 240-450Vdc Rated Power 6200W Maximum Solar Charging Current:120A GRID/AC OUTPUT: Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz Normal Output Curren: 15.7A Power Factor Range: >0.99 Maximum Conversion Efficiency (DC/AC) :97% Normal Operating Frequency: 50/60Hz TWO LOAD OUTPUT POWER: Full Load:3600W Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT: Normal operating voltage:230Vac Maximum input current:30A Normal operating frequency:50/60Hz Surge power:7200VA Maximum AC charging current:100A Battery voltage range: 20-33Vdc Maximum battery current: 150A What's in the box 1 x Inverter 1 x User Manual 1 x Wifi Dongle Battery Specifications: SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling. Energy:5.09kWh Installation Type: Wall Mounted Battery type-Chemistry: LiFePO4 Nominal Voltage:48V Nominal Capacity :106Ah Energy Density:5427 KWh Dimensions(LxWxH) :688 x 447 x 211mm Weight (Approx.):49.5KGS Terminal Type: M6 Terminal Torque:8.5NM Case Material: SPCC BMS build-in: Yes Internal Resistance:<30mO Efficiency - round trip:99% Self Discharge per Month:<3% Max parallel connectors:16Pcs Series connections:Not Allowed Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles Charge Temperature :20° C to 65° Storage Temperature :0C to 50° C Bluetooth(App) :Optional LCD Screen: Optional Heating Function: Optional Voltage Window: Optional Recommend Charge Voltage:43.2V-58.4V Max Charge Voltage:57.6±0.20V Recommend Charge current:58.4±0.20V Max Discharging Voltage:43.2±0.20V Max Continuous Discharge Current :100A Peak Discharge Current:150A Size: 688 x 447 x 211 mm 49.5 Kg What's In the Box: 1 x SVOLT 48V 106Ah A-Grade Lithium Battery 1 x Red (Positive) Battery Cable 1 x Black (Negative) Battery Cable 1 x Ethernet cable 1 x Manual 1x Wall Mount Bracket 1x Warranty Card 5 Years Warranty 10 Years Service Warranty Inverter & Battery Combo Includes: 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (2 Years Warranty) 1x SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery (2 Years Warranty) Battery cables and brackets incl
