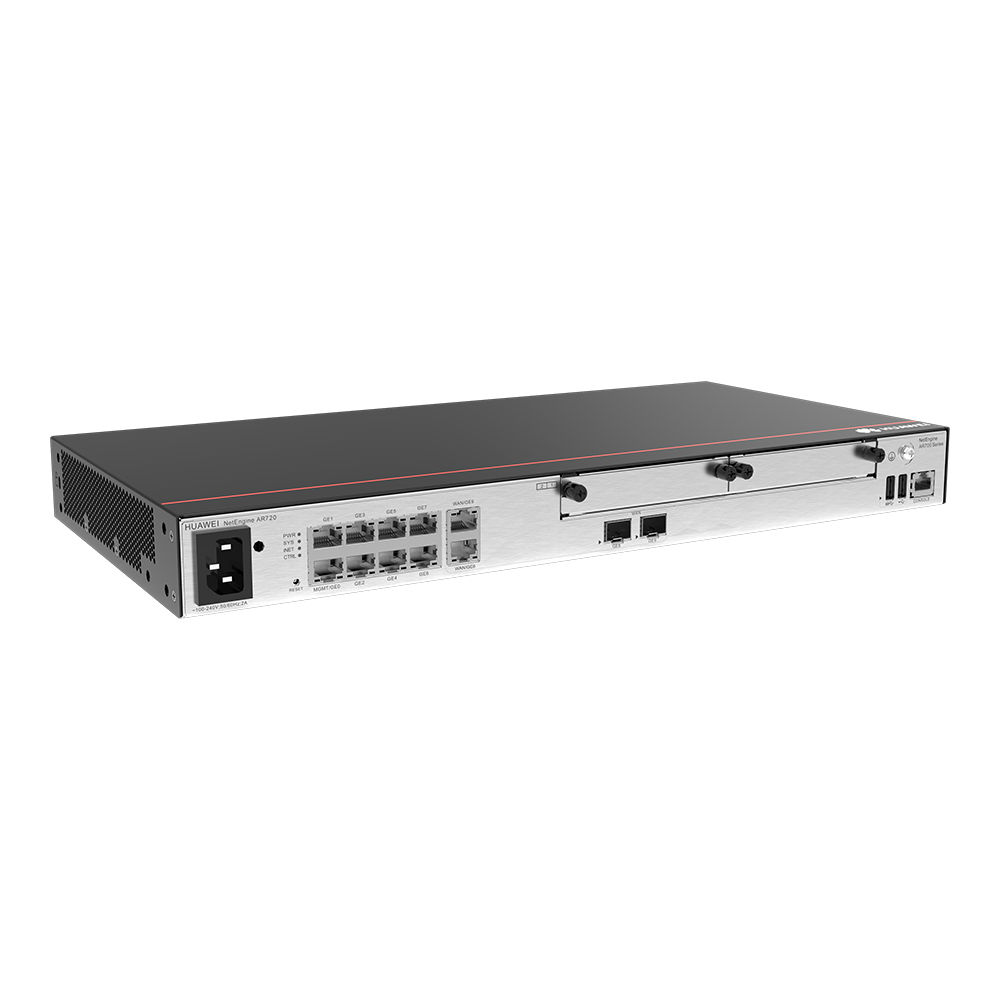

Huawei - NetEngine AR720

Huawei NetEngine AR700 series routers are next-generation high-performance routers. They use ARM-based multi-core processors and a non-blocking switching architecture, providing twice the industry average performance. Additionally, they integrate diverse functions such as 5G, routing, switching, VPN, security, and MPLS, enabling diversified enterprise services in the cloud era. NetEngine AR700 series enterprise routers are available in the following models: NetEngine AR720 and NetEngine AR730. Specifications for the NetEngine AR720 are as follows: - Forwarding performance: 9 Mpps to 25 Mpps - Number of connected terminals: 700 - Fixed WAN ports: 2 x GE combo ports - Fixed LAN ports: 8 x GE ports (can be switched to WAN ports) - Dimensions (H x W x D): 43.6 mm x 442 mm x 220 mm

Features:

High performance: - ARM-based multi-core processors and non-blocking switching architecture - Twice the industry average performance, ensuring a low latency for key services High reliability: - Hot swapping of cards, ensuring service continuity and stability - Link backup for enterprise services, enhancing service access reliability - Fault detection and determination in milliseconds, minimizing the service interruption time Easy O&M: - Multiple management modes such as SNMP ,CloudCampus and web system, simplifying network deployment and reducing OPEX Service convergence: - Integration of functions such as routing, switching, VPN, security, and WLAN, enabling diversified enterprise services, saving space, and reducing TCO Security: - Built-in firewall, IPS, URL filtering, and multiple VPN technologies, providing comprehensive security protection capabilities

Specifications:

- Processor: ARM64 4-core - Forwarding performance:  9 Mpps to 25 Mpps - Outbound bandwidth: 4 Gbit/s - Fixed WAN ports: 2*GE combo ports - Fixed LAN ports: 8 x GE electrical ports (can be switched to WAN ports) - SIC slots: 2 - WSIC slot (default/maximum**): 0/1 - Serial auxiliary or console port: 1 x RJ45 console serial port - USB ports: 2 x USB ports - Memory: 4GB - Flash***: 1GB - Hot swapping: Supported - Dimensions excluding the parts protruding from the body (H x W x D): 44.4 mm x 442.0 mm x 220.4 mm - Dimensions with the parts protruding from the body (H x W x D): 44.4 mm x 442.0 mm x 225.2 mm - Dimensions of the packing box (H x W x D): 90 mm x 570 mm x 390 mm - Weight (unconfigured): 3.2 kg - Rack installation: IEC - Required space in a rack: 1 U - Rated input voltage (AC): 100 V to 240 V - Rated input frequency (AC) 50 Hz/60 Hz - Maximum input voltage (AC): 90 V to 264 V - Maximum input current (AC): 2 A - Maximum output power (AC): 70 W - Maximum power consumption: 33 W - Fan module: Built-in unpluggable fan module - Airflow: Left to right - Noise: 52.3 dB - Operating temperature: 0°C to 45°C - Operating humidity: 5% to 95% (non-condensing) - Operating altitude: < 5000 m - Storage temperature: –40°C to +70°C - Storage altitude: < 5000 m   **The maximum number of slots includes the number of combined slots. ***Although the flash memory is 1 GB, but the size that customers can use is 512 MB.

What's In The Box:

1 x Huawei NetEngine AR720 1 x User Guide
