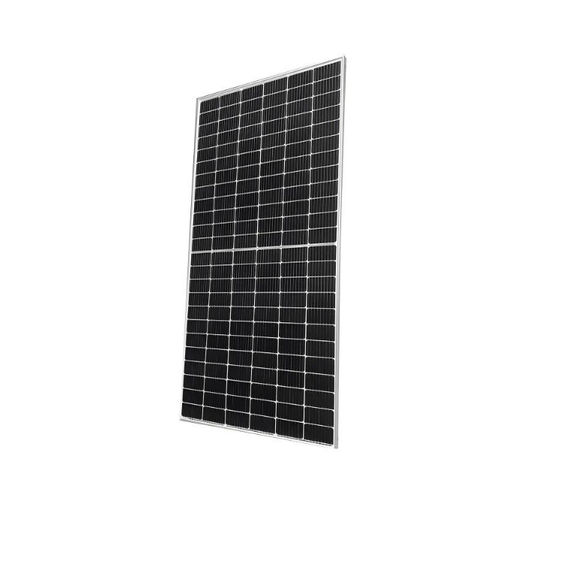

JA Solar 550w mono solar panel
Main image
Click to view image in fullscreen
![]()
Product Images
Main image
Click to view image in fullscreen
![]()
SKU
33311ccb
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Product Information
PRODUCT DIMENSIONS: 227.8cm x 113.4cm x 3.2cm
The JA Solar 550w JAM72S30 is the latest in JA Solar's 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to incredible power of 550W. This module offers better temperature-dependent performance and en...
More Information
Show more information
Similar offers
R 1,999.00
R 2,299.00
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest
free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
- You must be over 18 years old.
- You must have a valid South African ID
- You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Standard Delivery Fees Apply
Qualifies for
Free Delivery
For Orders Over
R4000.00
JA Solar 550w mono solar panel
SKU 33311ccb
R 1,999.00
R 2,299.00
Similar offers
PRODUCT DIMENSIONS: 227.8cm x 113.4cm x 3.2cm
The JA Solar 550w JAM72S30 is the latest in JA Solar's 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to incredible power of 550W. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range:
Features;
- Higher power output
- Less shading
- Lower resistive losses
- Lower LCOE
Technical Specifications:
Cell: Mono.
Cable Cross Section Size: 4mm.
No. of Cells: 144 (6 x 24).
Junction Box: IP67, 3 diodes.
Connector: Genuine MC4-EVO2 - QC 4.10-35/45
Electrical Parameters at STC:
- Rated Maximum Power (Pmax) [W]: 550
- Open Circuit Voltage (Voc) [V]: 49.90
- Maximum Power Voltage (Vmp) [V]: 41.96
- Short Circuit Current (Isc) [A]: 14
- Maximum Power Current (Imp) [A]: 13.11
-Module Efficiency [%]: 21.3
- Power Tolerance: -0~+5W
- STC: Irradiance 1000W/m2, cell temperature 25 C, AM 1.5G.
Product label
JA Solar 550w mono solar panel
SKU
33311ccb
Pargo Available
No
Ean code
6009541587570
Gross weight (kg)
15.00
Product width in cm
113.00
Product depth in cm
277.00
Product height in cm
5.00
