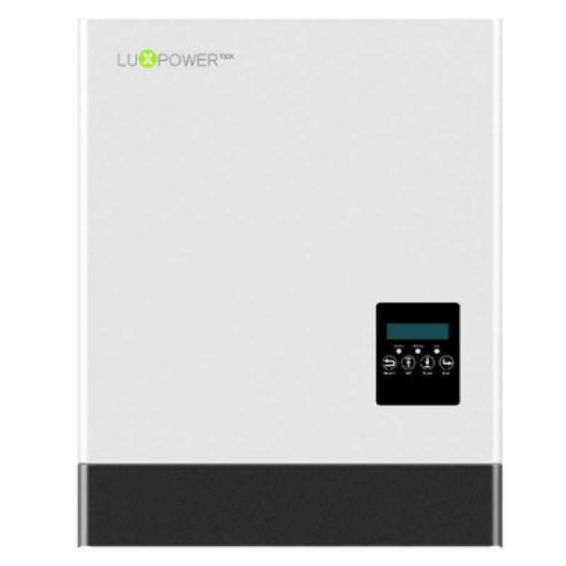

System Connection: A newly designed solar and energy storage best off-grid inverter, capable to install in on-grid solar, off-grid solar and back-up systems. LXP Hybrid enables a programmable and scheduled smart solar energy storage system to help increase your solar energy self-consumption rate, protect your home appliances from grid shortage, and balance your energy usage strategy to save energy bill. LXP hybrid inverters support variable working modes: Self consumption mode: Solar power will be used to take house load first, the left solar power will be used to charge the battery, after battery charged, the solar power can feed into grid. Force charge and discharge mode: Off Grid Solar Inverter will charge or discharge battery according to the time users set. Charge first mode: Solar power will used to charge battery first, then take family load and at last feed into grid. The best off grid inverter mode is used in the area where grid power supply is not stable Parallel Connection: The LXP off grid solar inverter MG series support parallel connection function. Which means users can extend their off grid power very easily. Due to the advanced control method, there are some advantages for the parallel system: -As more as 9 inverters can be connected -There is no requirement for same length of cable connection -Users can connect all inverters to a big battery bank or connect to different battery group Luxpower (LXP5000) 5KW Hybrid Inverter General Data Maximum Efficiency: 97.5% Integrated DC Switch Transformerless Design Supports Paralleling Solar Input Maximum DC Input Power: 8000W Nominal DC Input Voltage: 360VDC DC Input Voltage Range: 100VDC-550VDC MPPT Voltage Range: 120VDC-500VDC Start Voltage: 140VDC Number of MPP Trackers: 2 Maximum DC Input Current: 12.5A / 12.5A Battery Input / Output Compatible Battery Type: Lithium-ion / Lead-Acid Nominal Battery Voltage: 48VDC Battery Voltage Range: 40VDC - 60VDC Maximum Charge / Discharge Current: 80A / 80A Maximum Charge / Discharge Power: 5000W / 5000W Charging Curve: 3 Stages AC Input / Output Nominal AC Output Power: 5000W Nominal AC Output Current: 25A Nominal AC Voltage: 230VAC (180VAC-270VAC) Nominal AC Frequency: 50Hz / 60Hz (45Hz-55Hz / 55Hz-65Hz) Power Factor: >0.99 @ Rated Power 0.8 Lagging - 0.8 Leading Adjustable Environment Limit Ingress Protection: IP65 Relative Humidity: 0% to 100% Operating Temperature Range: -25 C to +60 C Operating Altitude: <2000m Communication: RS485 / WIFI / CAN Warranty: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void. The serial Numbers of the units also need to match for the item that was sold as to avoid tampering or returning of another similar item with a different serial number. What's in the box 1 x Hybrid Inverter 1 x Wall-mounted Bracket 1 x Inverter Protective Cover 1 x Communication Port Cover 1 x CT 1 x User Manual 1 x WIFI 1 x Quick Installation Instruction 1 x Check list 1 x Battery Positive waterproof cover 1 x Battery Negative waterproof cover 1 x AC Connector 1 x EPS Connector 2 x PV Positive Connector 2 x PV Negative Connector 1 x Battery Communication Cable 4 x Expansion Screw and Tube 1 x Security Screw 12 x Cross Head Screw (M3:8PCS, M4:4PCS) 4 x RJ45 Terminal 4 x RJ45 Extension Terminal 6 x 7 Rubber waterproof plug 2 x 10 Rubber waterproof plug
