Description

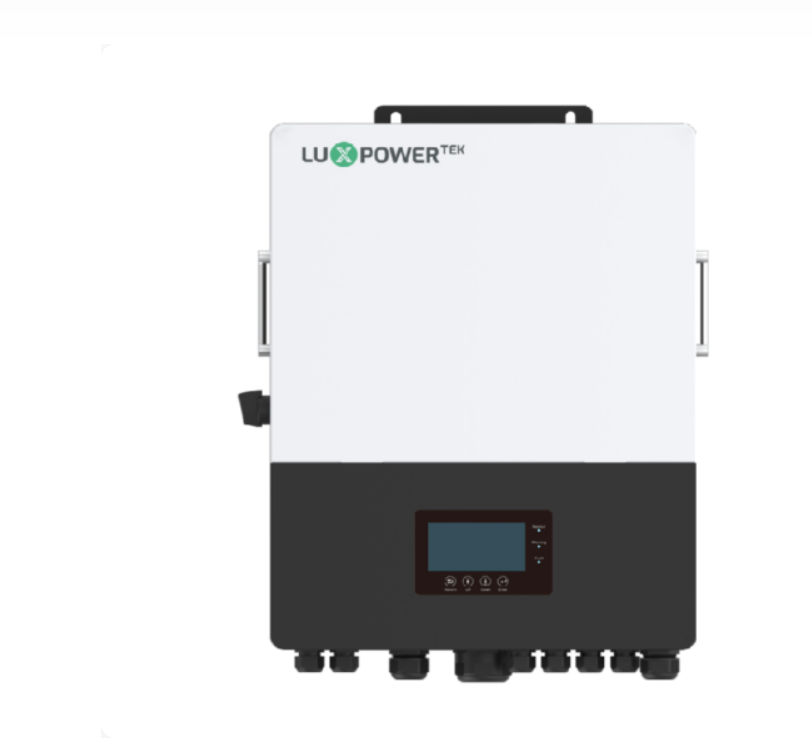

The LuxPower SNA5000 is a versatile hybrid inverter that seamlessly integrates solar energy with battery storage and grid power. It offers intelligent power management, allowing for efficient energy usage in both off-grid and hybrid modes. With advanced features such as dual MPPT trackers and extensive compatibility with leading battery brands, this inverter ensures reliable performance and easy monitoring through a dedicated app.

Features

The LuxPower SNA5000 comes equipped with a range of features designed to optimize your energy system:

• Intelligent Off-Grid & Hybrid Modes
• PV and AC Power Can Power Loads Simultaneously
• 2 x MPPTs with Wide Input Voltage Range
• BMS Communication with Leading Battery Brands
• Free Monitoring via App and Remote Upgrades
• Supports Single or Unbalanced Three Phase
• Parallel Up to 10 Units
• Independent Generator Interface

Battery Compatibility List

• BYD
• Dyness
• Hubble
• Lithium Batteries SA
• PylonTech
• Shoto
• Revo

Specifications

Battery Input Data:

• Battery Type: Lead-acid or Li-Ion
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A

PV String Input Data:

• Max. DC Input Power (W): 6500W
• PV Input Voltage (V): 370V (100V-500V)
• MPPT Range (V): 125-425V
• Start-up Voltage (V): 150V
• PV Input Current (A): 11A + 11A
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1+1

AC Output Data:

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power (off-grid): 2 times of rated power, 10 seconds
• AC Output Rated Current (A): 21.7A
• Max. AC Current (A): 25A
• Max Continuous AC Pass-through (A): 35A
• Output Frequency and Voltage: 50Hz; 240Vac

Efficiency:

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection:

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti-islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output Over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output Over Voltage Protection: Integrated

Certifications and Standards:

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data:

• Operating Temperature Range (℃): -25—60℃, >45℃ Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 x 330 x 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

What's in the Box?

The LuxPower SNA5000 package includes:

• LuxPower SNA5000 Hybrid Inverter Unit
• WiFi Dongle
• BMS Communication Cable
• Installation Manual
• Mounting Accessories
