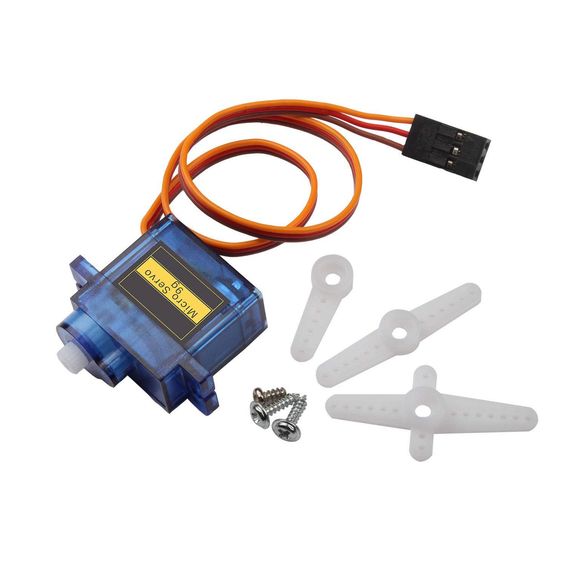

Mini Micro Servo 9g TS90D Servo Motor 360 Degree

Mini Micro Servo 9g TS90D Servo Motor 360 Degree
368706
516765d9
ZAR
R0.000000
SKU 516765d9
Out of Stock. Save to Wish List
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Show more information
R 66.00
Or pay as low as R 11.00 /month with
Or 4x interest-free payments of R 16.50 with
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
  • You must be over 18 years old.
  • You must have a valid South African ID
  • You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
R 66.00
Experts Recommend Buying This Together
Bundle Total:
How Our Happy Customers Are Using It
Product Information
Digital Apply Environmental Condition: Storage Temperature Range: -30°C～80°C Operating Temperature Range: -25°C～70°C Humidity Range: 65% ±10% Mechanical Specifications: Size: 22.4*12.5*22.8mm/ 0.88x0.49x0.89 in Weight:10g±5% Gear type: Plastic Limit angle: 360° Bearing: No Horn gear spline: 20T (Diameter: 4.9mm /0.19 in ) Horn type: Plastic, POM Case: Engineering plastics (PBT) Connector wire: 250mm±5mm / 9.84in±0.02in Motor: Carbon brush motor Splash water resistance: No Electrical Specification: Operat voltage: 4.8V -6.0V No load speed: 0.09sec/60° (4.8V) , 0.07sec/60°(6V) No-load current : 90mA/4.8AV , 180mA /6V Stall current : Max 550mA ±10% (4.8V) , Max 750mA±10% (6V ) Control Specification: Command signal: Pulse width modification Amplifier type: Digital controller Signal Period : 20ms Pulse width range: 500～2500μsec Neutral position: 1500μsec Running degree: 270°±3°(when 500～2500μsec) Running degree: 135°±3°(when 500～1500μsec) Running degree: 135°±3°(when 2500～1500μsec) Dead band width: 5 μsec Rotating direction: Counterclockwise (when 1000～2000μsec) Connection: Red wire: Positive + Black wire: Negative - Brown wire: Signal S

Product label
Mini Micro Servo 9g TS90D Servo Motor 360 Degree
SKU
516765d9
Pargo Available
Yes
Ean code
9310601301001
Gross weight (kg)
0.14
Product width in cm
1.20
Product depth in cm
2.30
Product height in cm
2.60
