Roof drain for flat roof surfaces Ecoguss KESSEL-EDT

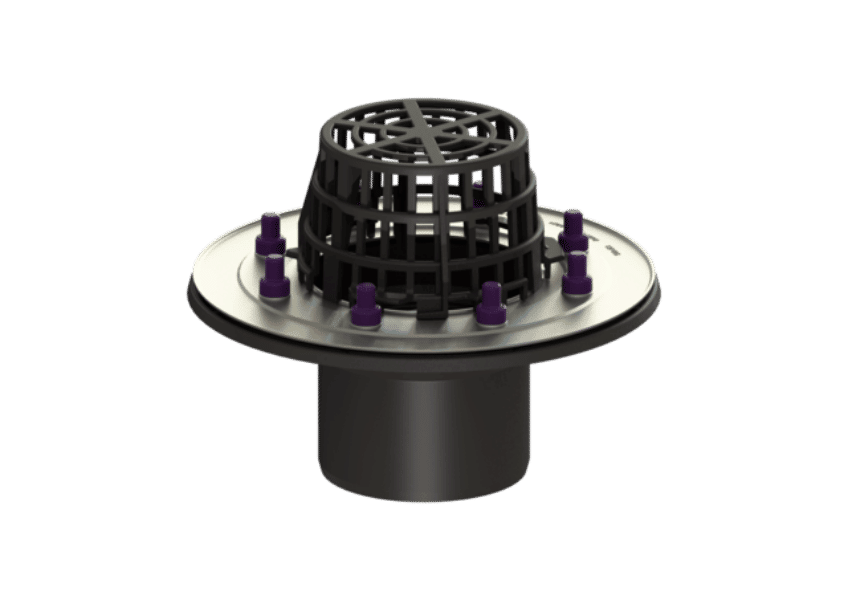

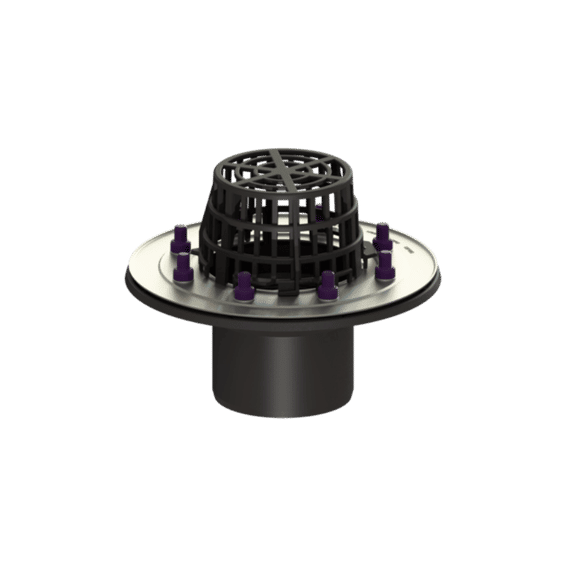

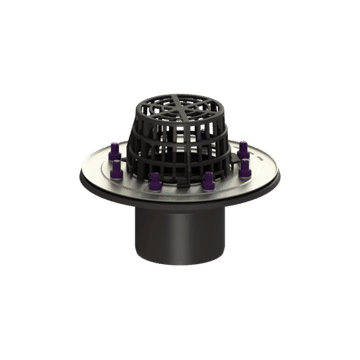

Roof drain for flat roof surfaces Ecoguss Press. fl., DN 100, with leaf trap The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Version: System: 100 Type of waterproofing layer: single waterproofing layer Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Dimensions: Length: 246 mm Width: 246 mm Height: 182 mm Cutout dimension, length: 180 mm Cutout dimension, width: 180 mm Diameter: 120 mm Drain body: Material of drain body: PP Coverage features: Type of cover: Leaf trap Cover material: Polymer Colour of cover: black Length: 120 mm Width: 120 mm Height: 80 mm Shape of upper section: round Upper section material: PP
