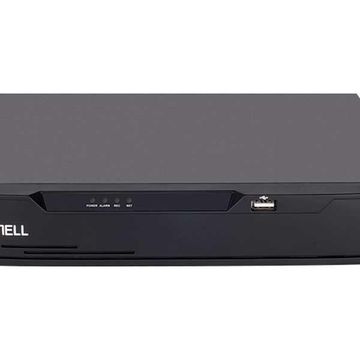

Sunell 4-Channel 1-Bay Hybrid Digital Video Recorder, 1X Lan, H.264 (Sn-Adr2204E1)

Sunell 4-Channel 1-Bay Hybrid Digital Video Recorder, 1X Lan, H.264 (Sn-Adr2204E1)
258886
5e0bd4c4
ZAR
R0.000000
SKU 5e0bd4c4
Out of Stock. Save to Wish List
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Show more information
R 1,763.00
Or pay as low as R 293.83 /month with
Or 4x interest-free payments of R 440.75 with
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
  • You must be over 18 years old.
  • You must have a valid South African ID
  • You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
R 1,763.00
Already own this Product? for all to see!
How Our Happy Customers Are Using It
Product Information

Sunell 4-Channel 1-Bay Hybrid Digital Video Recorder, 1x LAN, H.264 (SN-ADR2204E1)

  • Supports AHD/TVI/CVI/CVBS/IP video inputs
  • Supports VGA, HD-OUT, CVBS output
  • Easy to use Same Interface of GUI/WEB/Client
  • Support various mobile monitoring:（IOS, Android)
  • Support more than languages
  • Perfect protection circuit, unique triple watchdog function
  • Supporting web, IMS, provide SDK development



System
Main Processor Embedded processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4ch BNC
AHD Camera 1080P / 720P / 960H @25/30fps
TVI Camera 1080P / 720P / 960H @25/30fps
CVI Camera 1080P / 720P / 960H @25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4ch, each channel up to 1080P
Audio In/Out 4ch input, 1ch output, RCA
Two-way Talk N/A
Display
Interface   1ch HD-OUT, 1ch VGA, 1ch CVBS
Resolution HD-OUT: 1920×1080, 1280×1024, 1440×900
VGA: 1920×1080, 1280×1024, 1440×900
Multi-screen Display 1/4
Recording
Compression H.264 High Profile
Resolution 1080P/720P/960H &etc.
Record Rate 1080P@12fps, 960H (1~25/30fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Event, Timer
Record Interval Post-record: 5 ~ 60 sec
Video Detection and Alarm
Trigger Events Recording, Buzzer, Push message, Pop up message
Video Detection Motion Detection, Video Loss, Camera Tamper
Alarm input N/A
Network
Interface 1 RJ-45 port (10/100Mbps)
Network Function HTTP, TCP/IP, UDP, NTP, DHCP, DNS, IP Filter, DDNS,
Max. User  Access Access 3 users
Smart Phone iPhone, iPad, Android
Interoperability   ONVIF 2.6, SDK
Playback and Backup
Playback   4/1
Search Mode Time /Date, Alarm, Picture grid, Event
Playback Function Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB HDD
Storage
Internal HDD 1 SATA Ports, up to 6TB for each HDD
Mounting Mode Embedded
eSATA   N/A
Interface
USB 2 ports (USB 2.0 x2)
RS232   N/A
RS485 1 Port, for PTZ Control
General
Power Supply DC12V/2A
Power Consumption Max 5W (without  HDD)
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Strorage Conditions Less than 90% RH
Certifications CE/FCC
Dimensions 255mm(L)x244mm(W)x44mm(H)
Net Weight 900g
Product label
Sunell 4-Channel 1-Bay Hybrid Digital Video Recorder, 1X Lan, H.264 (Sn-Adr2204E1)
SKU
5e0bd4c4
Pargo Available
No
Ean code
2000111132819|6009710043516
Gross weight (kg)
27.00
Product width in cm
14.00
Product depth in cm
6.00
Product height in cm
43.00
