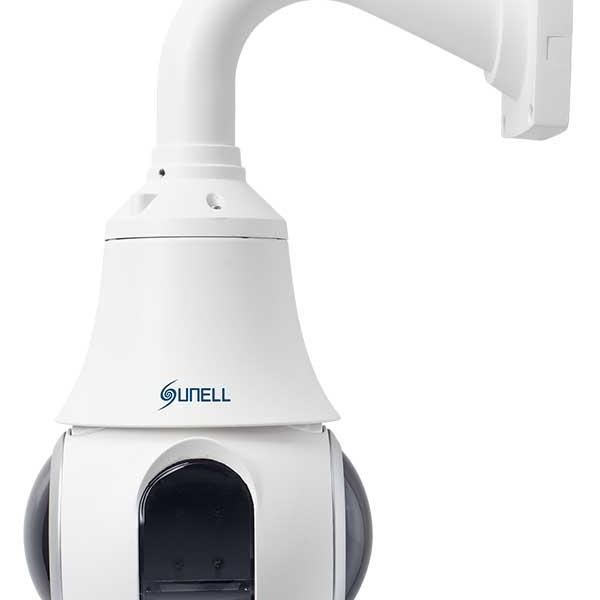

Sunell 5Mp 12X Optical Poe+ Mini Ptz Camera [Sn-Ips5950Cdr-Z12-Wo]
Main image
Click to view image in fullscreen
![]()
Product Images
Main image
Click to view image in fullscreen
![]()
SKU
eafcd0dc
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Product Information
Sunell 5MP 12x Optical PoE+ Mini PTZ Camera [TPC4201KT(III)/F50]
1/2.8" progressive scan CMOS
12x optical zoom,16x digital zoom
5MP(2560×1920)@25/30fps
Multiple streams
3D DNR, WDR, ICR, IVS, Defog
Auto tracking
Smart IR range up to 80m
IP66
Camera
Image Sen...
More Information
Show more information
R 12,397.00
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest
free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
- You must be over 18 years old.
- You must have a valid South African ID
- You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Standard Delivery Fees Apply
Qualifies for
Free Delivery
Free Delivery On Orders Over
R4000.00
Sunell 5Mp 12X Optical Poe+ Mini Ptz Camera [Sn-Ips5950Cdr-Z12-Wo]
SKU eafcd0dc
R 12,397.00
Already own this Product?
for all to see!
Experts Recommend Buying This Together
-
Sunell 5Mp 12X Optical Poe+ Mini Ptz Camera [Sn-Ips5950Cdr-Z12-Wo]R 12,397 .00
-
..
-
..
-
..
Bundle Total:
Bundle Savings:
Sunell 5MP 12x Optical PoE+ Mini PTZ Camera [TPC4201KT(III)/F50]
- 1/2.8" progressive scan CMOS
- 12x optical zoom,16x digital zoom
- 5MP(2560×1920)@25/30fps
- Multiple streams
- 3D DNR, WDR, ICR, IVS, Defog
- Auto tracking
- Smart IR range up to 80m
- IP66
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 2560(H) x 1920(V) |
| Electronic Shutter | Auto/Manual, 1/5-1/20,000s |
| Min. illumination | Color: 0.01Lux @(F1.2,AGC ON) |
| B/W: 0Lux @(IR LED ON) | |
| S/N Ratio | 55dB |
| Day/Night | Auto(ICR) / Day / Night / Timing |
| Wide Dynamic | WDR (120dB) |
| Range | |
| IR Range | Up to 80m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 6pcs |
| Lens | |
| Focal Length | 4.7~56.4mm |
| Max. Aperture | F1.6~F3.0 |
| Angle of View | H: 60.9°~6.43°, V: 40.1°~4.1° |
| Optical Zoom | 12x |
| Digital Zoom | 16x |
| Focus Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless, Tilt: -10° ~ +90° |
| Manual Control Speed | Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s |
| Preset Speed | Pan: 180° /s, Tilt: 90° /s |
| Presets | 300 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan, |
| Speed Setup | Auto/Manual (0-8) |
| Power up Action | Support |
| Idle Motion | Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 5MP(2560×1920) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 2560×1920/2048×1536/1280×960 @25/30fps |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps |
| Stream3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~12Mbps |
| Stream2: 100kbps~6Mbps | |
| Stream3: 100kbps~3Mbps | |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (120dB) |
| White Balance | Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps(G.711), 16kps(RAW_PCM) |
| Network | |
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS |
| Local PC for instant recording | |
| Micro SD card 128GB | |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | SunView |
| Smart Phone | IOS, Android |
| Intelligence | |
| Auto Tracking | Support |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 2ch Input, 1ch Output |
| RS485 | N/A |
| CVBS Output | N/A |
| Reset Button | Yes (Built-in) |
| Electrical | |
| Power Supply | AC24V/POE+ (IEEE 802.at) |
| Power Consumption | Less than 25W |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F) |
| Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66, TVS4000V |
| Certifications | CE/FCC |
| Casing | Metal |
| Dimensions | 146.6×139.3×218.3mm |
| Net Weight | 1.5Kg |
