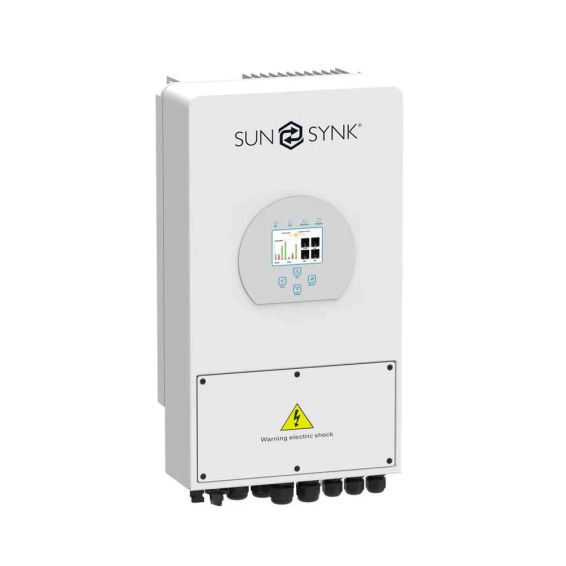

SUNSYNK 16KVA SINGLE PHASE DUAL MPPT - SUN-16K-SG01LP1-EU

Higer yields. Improve self-consumption ratio up to 80%, reducing your electricity bill. DC/AC ratio up to 1.3, completely suitable for double-side PV modular. Two MPPT design, Max. efficiency of 97.6%. User-friendly. LCD Touch screen and buttons, easy operation. Compatible with lithium-ion battery and lead acid battery. Web browser and mobile App monitoring supported. Reliable. PV lighting protection, Anti-islanding protection, Leakage current protection etc. Support store energy from DG when needed, ensure the system working within 7*24H. IP65 protection degree, adapt to indoor and outdoor using. Automatically switch from on-grid to off-grid mode within 5ms. Zero exporting function, fast reaction within 200ms in zero export mode. Smart. Programmable charging and discharging schedule. Both wind turbines and solar panels can be connected as DC input power. Max. 16 units can be paralleled for higher system power. Retrofitting of existing solar system to energy storage system. Battery Input Data Battery Type: Lead-acid or Li-lon Battery Voltage Range (V): 40-60V Max. Charging Current (A): 190A Max. Discharging Current (A): 190A Charging curve: 3 Stages/Equalization External Temperature Sensor: Optional Charging Strategy for Lithium Battery: Self-adaption to BMS PV String Input Data Max. DC Input Power (W): 15400W. PV input Voltage (V): 370V (100V-500V). MPPT Range (V): 125-425V. Start-up Voltage (V): 150V. PV Input Current (A): 22A + 22A. No. of MPPT Trackers: 2 No. of Strings Per MPPT Tracker: 2+2. AC Output Data Rated Power: 16,000 W Min PPT Voltage: 150 V Max PPT Voltage: 450 VDC Startup Voltage: 150 VDC Shutdown Voltage: 150 V Max Input Voltage: 450 V Max DC Power: 18,000 W Max AC Power: 16,000 W Surge AC Power: 24,000 W Max DC Current: 66 A Max DC Inputs: 6 Euro Efficiency: 97 % MPPT Quantity 3 Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.00% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 Safety Regulation: IEC62109-1, IEC62109-2 EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25—60 C , >45 C Derating Cooling: Fan Noise (dB): <30 Communication with BMS: RS485; CAN Protection Degree: IP65 Installation Style: Wall-mounted
