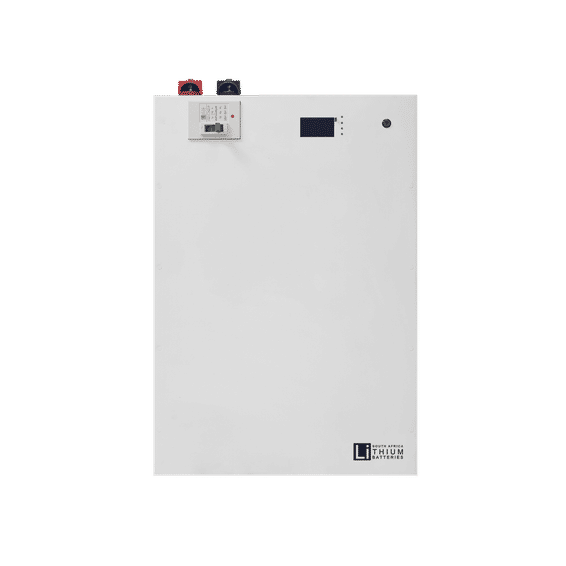

10.6 kWh 51.2v 208Ah New White LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery
Main image
Click to view image in fullscreen
calcActive())" class="flex gap-3 lg:gap-4 justify-center h-10 lg:h-[64px]">
Product Images
Product Videos
Main image
Click to view image in fullscreen
calcActive())" class="flex gap-3 lg:gap-4 justify-center lg:h-full lg:justify-start h-[64px] mt-6">
SKU
553a0960
Online Product | Delivery Only
Unavailable in Store
Product Information
COMPATIBLE WITH ALL PREVIOUS LBSA SMART BATTERIES
10.6KW Max Continuous Load
Cycle life
10 Year or 4500 cycles (9000 Cycles on BMS display) Warranty
Applicable for all batteries purchased after 2022/11/21
Details:
CAN Bus Comms: Victron, Growatt, Sunsynk,...
More Information
Show more information
R 45,999.95
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Standard Delivery Fees Apply
Qualifies for
Free Delivery
For Orders Over
R2500.00
COMPATIBLE WITH ALL PREVIOUS LBSA SMART BATTERIES
- 10.6KW Max Continuous Load
- Cycle life
- 10 Year or 4500 cycles (9000 Cycles on BMS display) Warranty
- Applicable for all batteries purchased after 2022/11/21
Details:
- CAN Bus Comms: Victron, Growatt, Sunsynk,DEYE, Sunsynk,Luxpower
- Bulk + Absorption: 56.2v
- Float : 56.2v
- Low Voltage Cut Off: 44v
- Maximum continuous Charge/Discharge For Single Unit: 200A (Recommended 50A)
- Charge for Parallel units: (100A*"Units In parallel") / 2
- Discharge for Parallel units: 200A * "Units in parallel
Display Definitions:
- OV - Warn: high pressure alarm
- OV - Prot: over-voltage protection
- UV - Warn: low pressure alarm
- UV - Prot: under-voltage protection
- OT-Warn:High temperature alarm
- OT-Prot:Over temperature protection
- UT - Warn: low temperature alarm
- UT - Prot: low temperature
- OC - Warn: over-current alarm
- OC - Prot: over-current protection
- CAPA - Warn: remaining capacity of the alarm
- OFF - USE: failure alarm
- SCP:Short circuit protection
Product label
10.6 kWh 51.2v 208Ah New White LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery
SKU
553a0960
Pargo Available
No
Ean code
6009234066381
Gross weight (kg)
83.00
Product width in cm
52.00
Product depth in cm
13.50
Product height in cm
75.00
