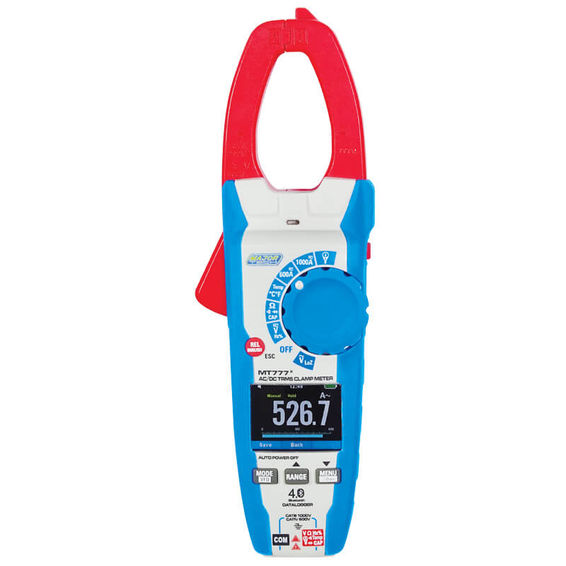

1000A AC/DC TRMS Bluetooth Clamp Meter (MT777) - Major Tech

The MT777 is a 1000A AC/DC TRMS Bluetooth Clamp Meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth, the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements plus Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features is Non-Contact voltage detection, data hold function and a built-in flashlight for dimly lit areas. Accessories: Test Leads Type-K Wire Probe Type-K Adaptor Carrying Case 3 x AAA Batteries Instruction Manual Note: Bluetooth Connect: Turn on the Bluetooth function on the instrument using Menu Button Turn on the Bluetooth of the Smartphone, press the Meterbox Pro icon and enter into the home interface. Then press Connect Device icon on the home interface, Bluetooth device name will appear. Touch the device name listed in Bluetooth devices list to connect the meter Detailed information about Meterbox Pro available on the APP help file. Meterbox Pro for Android: Please search in Google Play with keyword Meterbox Pro, download and run Meterbox Pro for IOS: Please search in the Apple Store with keyword Meterbox Pro, download and run Features : 6000 count TFT colour LCD display Ø33mm Cable Clamp size Measurement of AC, AC+DC TRMS and DC voltage up to 1000V Capacitance to 100mF Temperature measurement from -40⁰C to 1000⁰C Trend Capture Function 100 Graph Data Review INRUSH Current Measurements 3000A range for optional MT740 Flex Clamp Adaptor VFD – Variable Frequency Drive voltage value LoZ – Low impedance mode prevents false readings due to “Ghost” voltage NCV – Non-Contact Voltage Detector Continuity buzzer and Diode Test Peak Mode, Min/Max and Data Hold function Built-in Flashlight and Auto Power Off
