32 Channel Motion Sensor LED Stair Light Controller – Smart Cascading Staircase Lighting Automation 500w (DC12V–24V)

SKU 56feff22
Write a review
Out of Stock. Save to Wish List
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
32 Channel Motion Sensor LED Stair Light Controller – Smart Cascading Staircase Lighting Automation 500w (DC12V–24V)
532805
56feff22
Bing Light
ZAR
R0.000000

32 Channel Motion Sensor LED Stair Light Controller – Smart Cascading Staircase Lighting Automation 500w (DC12V–24V)

SKU 56feff22
Write a review
Out of Stock. Save to Wish List
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Fulfilled by: Light Market
Your Location: Change Location
Delivery Fee & Date:
R 2,300.00
Or pay as low as R 383.33 /month with
Or 4x interest-free payments of R 575.00 with
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
  • You must be over 18 years old.
  • You must have a valid South African ID
  • You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
R 2,300.00
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Fulfilled by: Light Market
Your Location: Change Location
Delivery Fee & Date:
Already own this Product? for all to see!
Experts Recommend Buying These Together
Bundle Total:
How Our Happy Customers Are Using It
Product Information

Bring staircases to life with an elegant and safe lighting solution. The 32 Channel Motion Sensor LED Stair Light Controller automatically illuminates steps as you walk, creating a cascading or flowing effect. Ideal for residential staircases, hotels, commercial hallways and decorative LED installations.

Key benefits:

  • Automatic motion-triggered step lighting for hands-free, safe navigation
  • Up to 32 adjustable channels (1–32 steps)
  • Multiple modes: step-by-step, every other step, all on, follow and automatic
  • Adjustable brightness (10%–100%) and speed (0.3s–1.2s) to match your aesthetic
  • Configurable timer (10s–100s) and 1% background standby option
  • Built-in short-circuit protection for safer installations

Technical specifications

Product name 32 Channel Motion Sensor LED Stair Light Controller – Smart Cascading Staircase Lighting Automation (DC12V–24V) 500w
Model LED2052-V2
Input voltage

DC 12V / 24V 500W (use switching power supply)
Channels 32 (settable 1–32 steps)
Sensors 2 × AB induction sensor heads (supports bidirectional detection)
Ports 2
Dimensions Approx. 180 × 63 × 19 mm
Protection Short-circuit protection; not waterproof; indoor use only

Operation & Settings

Quick summary: Use the front keys to configure channels, modes, delay time, brightness and speed. All settings are saved automatically after 5 seconds of inactivity.

  • Channel setup: Long press Key [1] for 4s to enter channel count selection (1–32). Short press to cycle; long press or wait 5s to save.
  • Modes: Short press Key [1] to choose among Step / Every other step / All on / Follow / Automatic.
  • Delay time: Short press Key [2] to set constant-on duration (10s / 20s / 40s / 80s / 100s).
  • Brightness: Long press Key [2] 4s, then short press to choose 10% / 20% / 40% / 60% / 100%.
  • Speed: Short press Key [3] to choose chase speed (0.3s / 0.5s / 0.8s / 1.0s / 1.2s).
  • Background standby: Long press Key [3] to toggle 1% background light when no motion is detected.
  • If AB sensors trigger together within 6s the controller supports smooth up/down detection; after 6s it prevents simultaneous bidirectional changes.

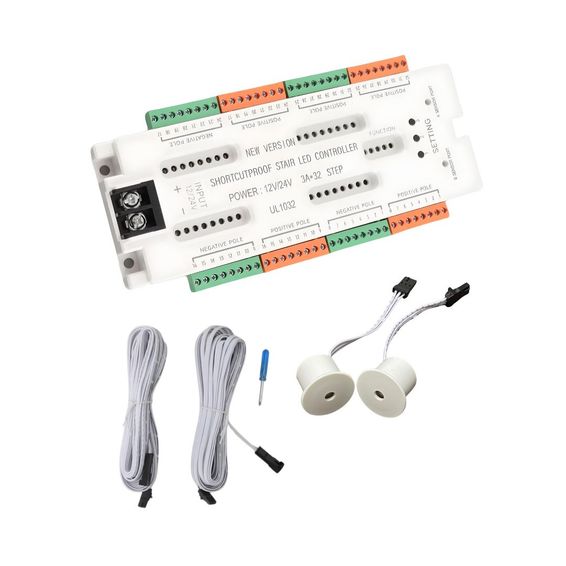

Package contents

  • 1 × LED Controller (LED2052-V2)
  • 2 × Motion Sensors
  • 2 × Extension Cables
  • 2 × Input Power Cables
  • 1 × Screwdriver
  • 1 × Label sticker set
  • 1 × Product manual

Warnings & Precautions

Important:
  • This product requires a DC 12V–24V switching power supply. Do not apply incorrect voltage - risk of damage.
  • Observe correct polarity for input ports. Do not reverse positive/negative.
  • Power off before wiring. Verify all connections before turning power on to avoid short circuits or abnormal control.
  • Not waterproof - do not immerse or install near open flame or high-humidity outdoor locations.
Product label
32 Channel Motion Sensor LED Stair Light Controller – Smart Cascading Staircase Lighting Automation 500w (DC12V–24V)
SKU
56feff22
Brand Name
Bing Light
Ean code
4780794534764
Gross weight (kg)
0.50
Product width in cm
6.30
Product depth in cm
18.00
Product height in cm
1.90
