Centurion D3 SMART Sliding Gate Motor Only
Centurion D3 SMART Sliding Gate Motor Only +
The Centurion D3 SMART Sliding Gate Motor Only + merges sleek design and top-tier performance with intelligent features, ensuring secure and dependable gate automation for all. This motor is packed with advanced yet intuitive functionality, making gate control effortless. Utilize the MyCentsys Remote smartphone app for seamless gate management, receive detailed diagnostic feedback for peace of mind, and benefit from reliable battery technology that withstands power outages. The D3 SMART Sliding Gate Motor Only + is installer-friendly, feature-rich, and budget-conscious, making it the intelligent choice for your home. Suitable for gates weighing up to 300kg. Please note: Batteries and remotes are not included with the motor.
Features of the D3 SMART Motor:
- Swift and Secure: Open your gate quickly to keep unwanted visitors out.
- Smart Control: Manage your gate conveniently with the user-friendly smartphone app.
- Easy Installation: Industry-leading design saves time and effort during installation.
- Reliable Performance: Never miss a beat with dependable battery-driven technology.
- Intelligent Features: Stay informed and in control with advanced alerts and notifications.
- Peace of Mind: Enhanced security with an improved theft-resistant cage.
- Convenient Setup and Operation: Effortless smartphone setup and single-action manual release.
- Wireless Safety: Compatible with Photon SMART Beams for a complete wireless experience.
Accessories for Centurion D3 Sliding Gate Motor (Optional Extra):
- Batteries: 1 x 12V 7.2AH SLA Battery or 1 x 12V 8AH Gel Battery
- Nylon Raz Rack, Steel Rack, Nylon Angle Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel
- Centurion Nova 1 Button, 2 Button, and 4 Button Remotes
- Centurion D3 SMART Anti-Theft Bracket - Gooseneck
- Gate wheels: 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution - Clearline Gate Motor Lighting and Surge Protector
Specifications of the D3 SMART Motor:
Input voltage: 110V - 240V AC 50/60Hz Current consumption (mains): 320mA peak Dx12V Battery charger current output: 1.8A @ 14.3V +/- 5% (28W) Maximum number of operations per day: 20 Duty cycle - Mains present: 25% Motor power supply: Battery-driven (Standard Capacity - 1x12V) Current consumption (motor at rated load): 11A Fuse Protection: Main Control Card: Serviceable - 35A, Aux. Supply: Resettable Fuse - 12V 300mA MAX (10sec Pulse), Charger (Mains Supply): Non-serviceable - 3A slow-blow Motor push force – starting: 18kgf Motor push force – rated: 12kgf Gate mass – maximum: 300kg Gate speed (varies with load): Maximum: Up to 24m/min, Rated: Up to 21m/min Manual Override: Lockable with key release Collision Sensing: Electronic Operating temperature range: -15°C to +50°C Onboard receiver type: Code-hopping multichannel receiver with selective add and delete Receiver code storage capacity: 32 Remotes Receiver frequency: 433.92MHz Degree of protection: IP55
What's in the Box:

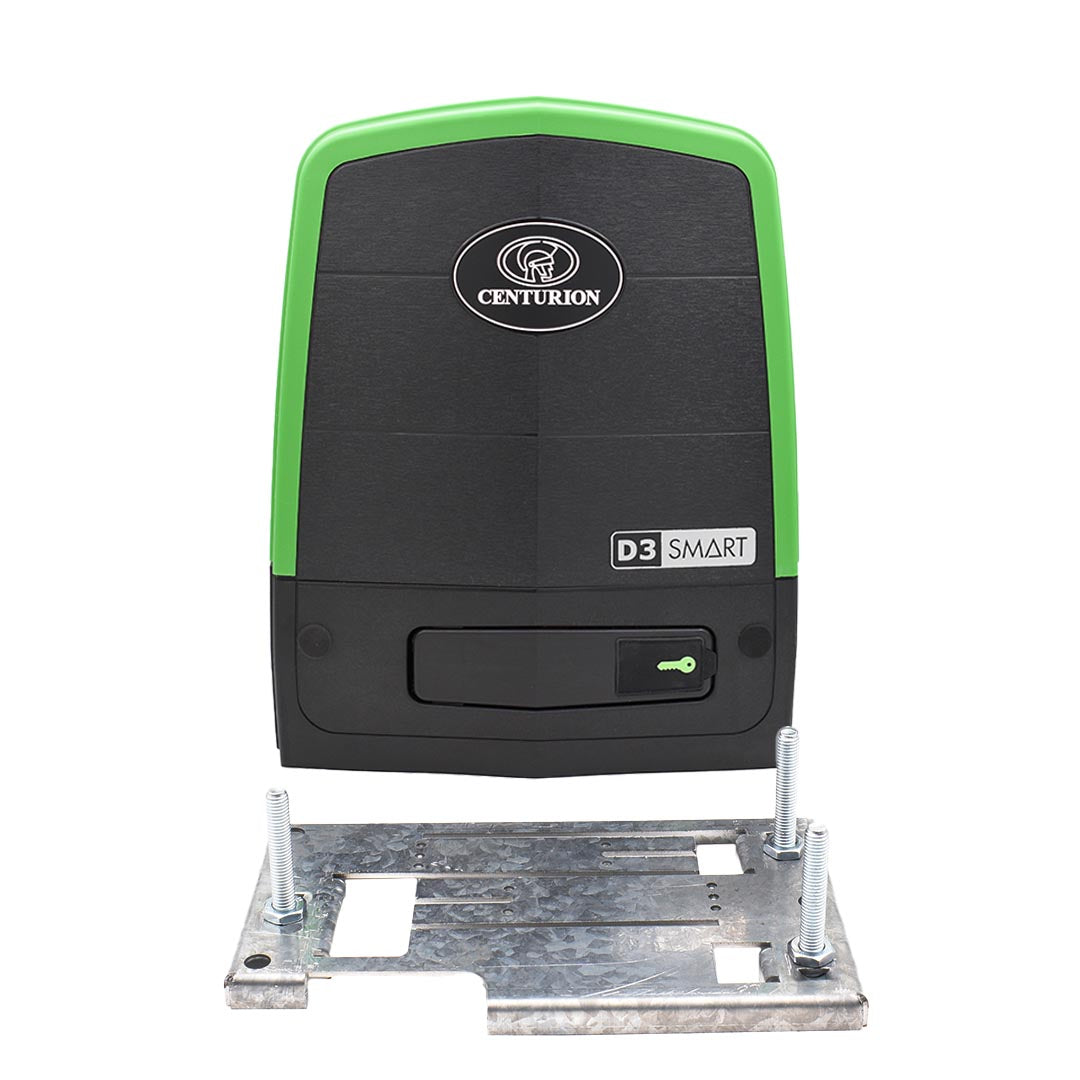

- 1 x Centurion D3 SMART Sliding Gate Motor
- 1 x Base Plate
