Description

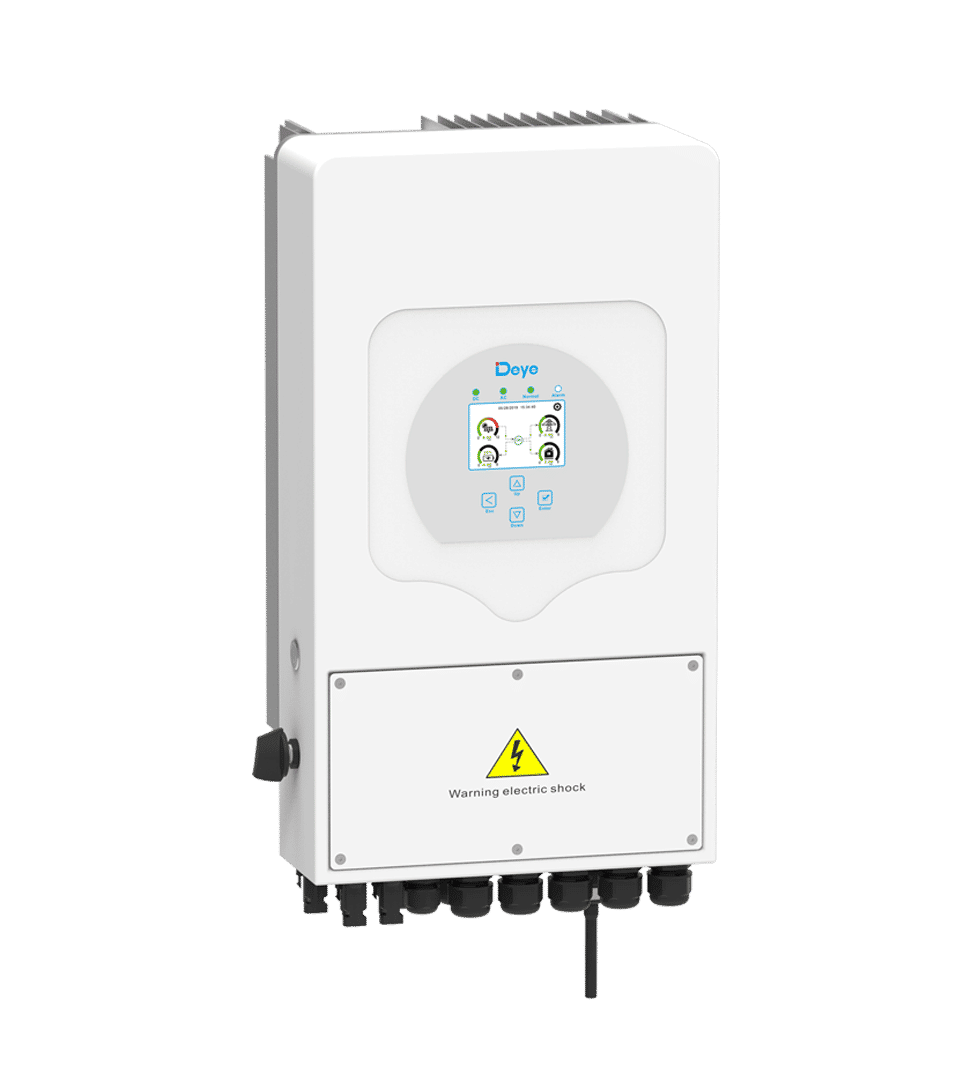

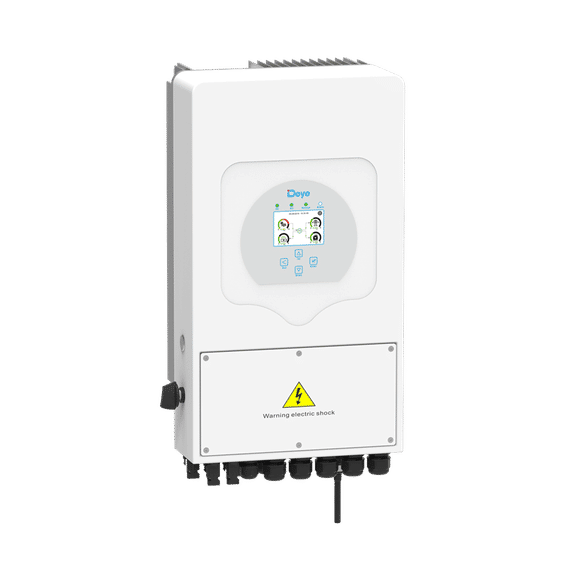

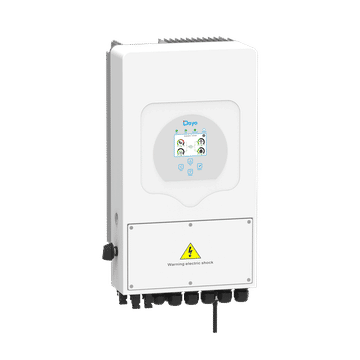

The Deye 5KW Hybrid Inverter is a versatile and efficient energy solution designed to seamlessly integrate with both on-grid and off-grid systems. Ideal for residential and small commercial applications, this hybrid inverter offers robust performance with its advanced features and smart technology. It supports a wide range of battery types and provides reliable power management, ensuring optimal energy utilization. With its high efficiency, comprehensive protection features, and easy installation, the Deye 5KW Hybrid Inverter is a top choice for enhancing your energy system's capability and reliability.

Features

The Deye 5KW Hybrid Inverter comes packed with features that ensure high performance and ease of use:

• Colourful touch LCD with IP65 protection
• AC couple to retrofit existing solar systems
• Supports up to 16 units in parallel for on-grid and off-grid operations
• Maximum charging/discharging current of 120A
• Six time periods for battery charging/discharging
• Supports energy storage from diesel generators
• Includes WiFi dongle and BMS communication cable

Specifications

Battery Input Data:

• Battery Type: Lead-acid or Li-Ion
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging Curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data:

• Max. DC Input Power (W): 6500W
• PV Input Voltage (V): 370V (100V-500V)
• MPPT Range (V): 125-425V
• Start-up Voltage (V): 150V
• PV Input Current (A): 11A + 11A
• No. of MPPT Trackers: 2
• No. of Strings per MPPT Tracker: 1+1

AC Output Data:

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power (off-grid): 2 times rated power, 10s
• AC Output Rated Current (A): 21.7A
• Max AC Current (A): 25A
• Max Continuous AC Pass-through (A): 35A
• Output Frequency and Voltage: 50Hz; 240Vac
• Grid Type: THD<3% (Linear load<1.5%)
• Current Harmonic Distortion: THD<3% (Linear load<1.5%)

Efficiency:

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection:

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti-islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output Over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output Over Voltage Protection: Integrated

Certifications and Standards:

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data:

• Operating Temperature Range (℃): -25—60℃, >45℃ Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 x 330 x 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

What's in the Box?

The Deye 5KW Hybrid Inverter package includes:

• Deye 5KW Hybrid Inverter unit
• WiFi dongle
• BMS communication cable
• Installation manual
• Mounting accessories
