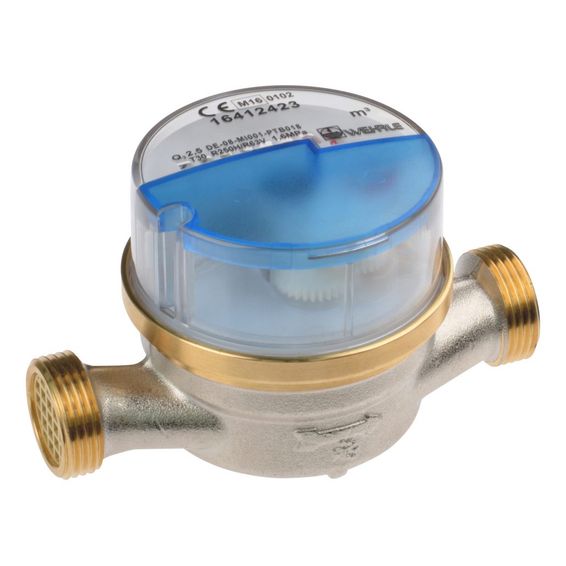

Water Meter for COLD Water Single-Jet Dry Meter MODULARIS 3/4''
SKU
defabd42
Online Product | Delivery Only
Unavailable in Store
This is a 3rd party product and is not available in store.
EDT WEHRLE COLD Water Single-Jet Dry Meter MODULARIS 3/4''
Product Information
EDT WEHRLE COLD Water Single-Jet Dry Meter MODULARIS 3/4''
guarantee precise measuring results and e... More Information
More Info about this Product
R 796.18 R 692.33
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Product information
EDT WEHRLE COLD Water Single-Jet Dry Meter MODULARIS 3/4''
guarantee precise measuring results and exceptional reliability. The absolute separation of wet and dry area protects the totalizer from deposits and corrosion. Therefore its rollers are always legible.
Can be upgraded for integration into any AMR system
Temperature range up to 50 °C (cold) and up to 90 °C (warm)
Nominal flow Q3 2,5 up to Q3 4
Nominal size DN13 up to DN20
Length 80 mm up to 130 mm
MID measurement accuracy class (Q3/Q1) up to R250 horizontal and up to R80 vertical
360° rotatable 8-digit totalizer
Nickel-plated brass body
Maximum pressure load 1,6 MPa
Protection class IP64
Water Meter for COLD Water Single-Jet Dry Meter MODULARIS 3/4''
defabd42
0.200000
No
98.5701.01.00
0.20
8.00
11.00
8.00
Water Meter for COLD Water Single-Jet Dry Meter MODULARIS 3/4''
