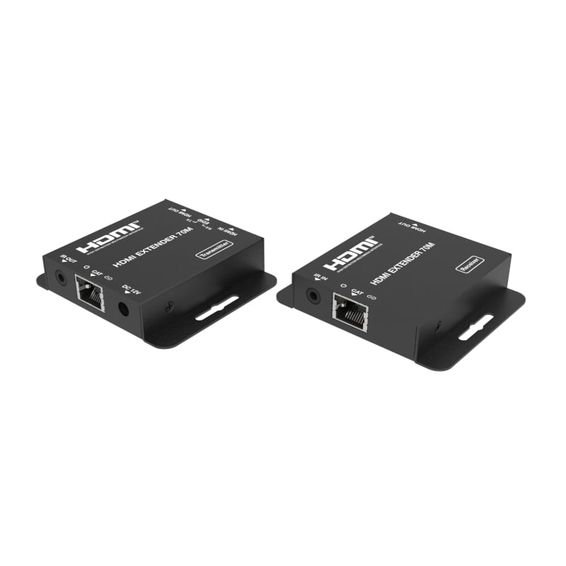

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays. FEATURES: HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant Support Video Resolution up to 4K2K@30Hz YUV 4:4:4 CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30 Support Copying EDID from Receiver Display or Loop Out Display Allow for Cascading via additional HDMI loop out port Support one-way POC functionality (from transmitter to receiver) One-way IR signal transmission SPECIFICATIONS: HDMI Compliance: HDMI 1.4 HDCP Compliance: HDCP 1.4 Video Bandwidth: 10.2Gbps Video Resolution: Up to 4K@30Hz Audio Support Up to 7.1CH HD audio Input TMDS Signal: 3.3 volts Input DDC Signal: 5.0 volts/P-P ESD Protection Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) Transmitter: Input: 1 x HDMI Type A [19-pin female] Output: 1 x HDMI Type A [19-pin female] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female] Receiver: Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female] Housing: Metal Enclosure Colour: Black Power Supply 12V/1A DC Power Consumption Transmitter: 1.86W Receiver: 0.87W Product Dimensions: 7.9 x 6.9 x 1.7 cm Weight: Transmitter: 132g Receiver: 130g WHAT'S IN THE BOX: HDCVT HDMI 70M Extender Receiver x1 HDCVT HDMI 70M Extender Transmitter x1 IR Blaster Cable x1 IR Receiver Cable x1 12V/1A DC Power Adapter x1 User Manual x1
