Product Information

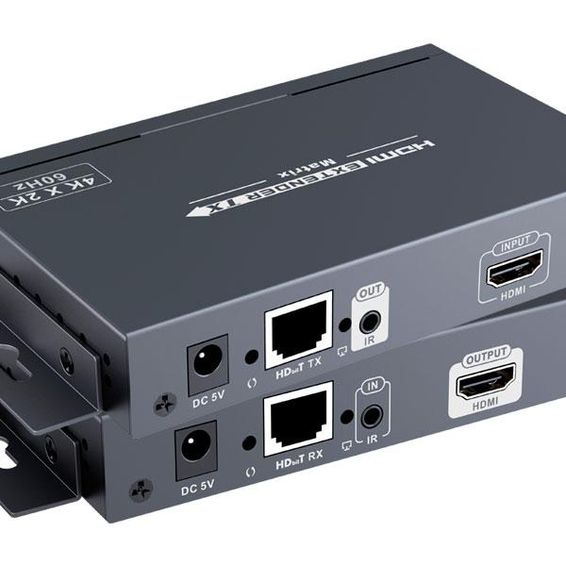

Lenkeng 120m 4K HDbitT HDMI2.0 Matrix Over CAT6 Extender With PoE (LKV393MATRIX)

This HDMI extender matrix applies advanced HDbitT over IP technology, to build up a many to many HDMI 2.0 extender matrix with IGMP LAN switch. It supports up to 100 pcs transmitters input and unlimited receivers output. It transmits the signal over a single CAT5/5e/6 cable up to 120 meters.

Features:

  • Route multiple HDMI sources to multiple HDMI displays through LAN switch supporting IGMP
  • Support up to 100 transmitters input, output is unlimited
  • Extend HDMI signal over a single CAT5/5e/6 cable
  • Support transmission distance up to 394ft/120m up to 4KX2K@60Hz
  • Support point to point and point to multi-point connection
  • Support IR pass-back function to control source device from Receiver location
  • Support to select and switch source device input from receiver via remote control and hard button
  • Support computer control software to select and switch source device input
  • Wall-mounting kits with screws
  • HDMI 2.0 and HDCP 2.2 compliant



Items Specification
Voltage/Current DC5V/3A
Power consumption TX: 7W     RX:＜10W
HDMI compliance HDMI2.0
HDCP compliance HDCP2.2
HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz,
  576p@50Hz, 720p@50/60Hz,
  1080i@50/60Hz, 1080p@50/60Hz,4Kx2K @24/25/30/60Hz
HDMI output resolution 1080p@60Hz, 4Kx2K@30/60Hz
Supports audio formats PCM
Maximum transfer rate 18Gbps
Input and output TMDS signal 0.7～1.5Vp-p(TMDS)
Input and output DDC signal 5Vp-p(TTL)
Input cable length ≤5m(AWG26)
Output cable length ≤5m(AWG26)
APP control Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily, OS system supports IOS and Android
IR remote control Supports IR passback with 20~60KHz frequancy
Transfer method Over UTP/STP CAT5/5e/6
Transmission distance 120 Meters
Connector RJ45
Delay ≤200 ms
Electrostatic protection of the whole machine 1a Contact discharge level 3
  1b Air discharge level 3
  Standard: IEC61000-4-2
Working temperature 0～50℃
Storage temperature -10～70℃
Humidity (nocondensation) 0～90%
Dimension 164(L) x108.5(W) x 23.6(H)mm
Material Iron alloy material + crystal panel
Finishing Grit blast
Color Black
Weight TX:330g,   RX:330g
Mean time between failures >30000 Hours
