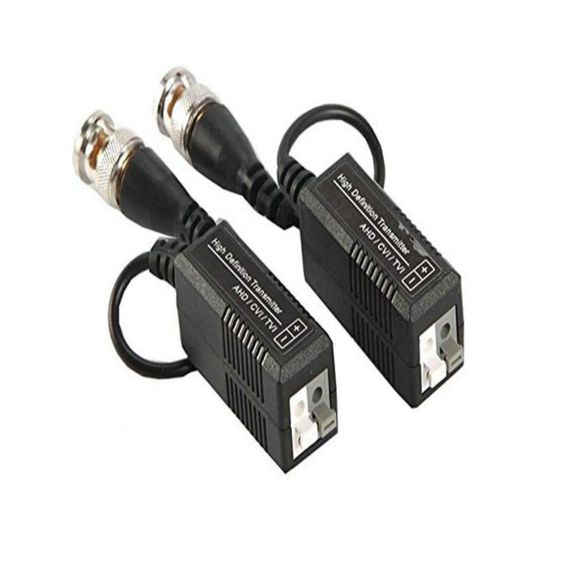

No power required AHD/HDCVI/HDTVI video format compatible Real time transmission Exceptional interference rejection Wave Filter Design,Anti-Static Design Long-distance transmission and high-quality image Compact size and easy installation cost-effective Specifications: ITEMS SPECIFICATION Transmission Distance HDCVI 720P:600m AHD 960H/1080P:300m HDTVI 720P/1080P:200m Video Compatible Format AHD/CVI/TVI Resolution 720P/960H/1080P Operating Frequency DC to 6MHz Common-mode/Different-mode rejection 15KHz to 5MHz 60 dB typ Attenuation 1.5dB typ Max Impedance Male BNC:75 Terminal:100 Wire type Network Wiring One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) Category Type 5 or better Impedance 100`b120ohms DC Loop Resistance 52 ohms per 1000ft(18 ohms per 100m) DC Loop Resistance Different Capacitance Power External power required No Protection Surge Protection Renewable solid state surge protection Video Input 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) Video Output 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) Connector Video input/output Male BNC / Push terminal Mechanical Housing ABS engineering plastic Body Color Black Environment Operating Temperature -20-70 Relative Humidity 0-95%(non-condensing) Storage Temperature -40-80 1 Channel passive video transceiver. Receiving and transmitting video signals over UTP cable without using the power supply. Video transmission via UTP CAT5 cable. Excellent noise interference rejection and built-in transient protection. Cost-effective point-to-point transmission. High quality image. Twisted Pair Video Baluns, for sending video signals up to 600m (B/W) / 300m(Color) 1 Channel passive video transceiver. What's in the box 1X High-Definition 5MP Passive HDCVI Single Channel Transceiver
