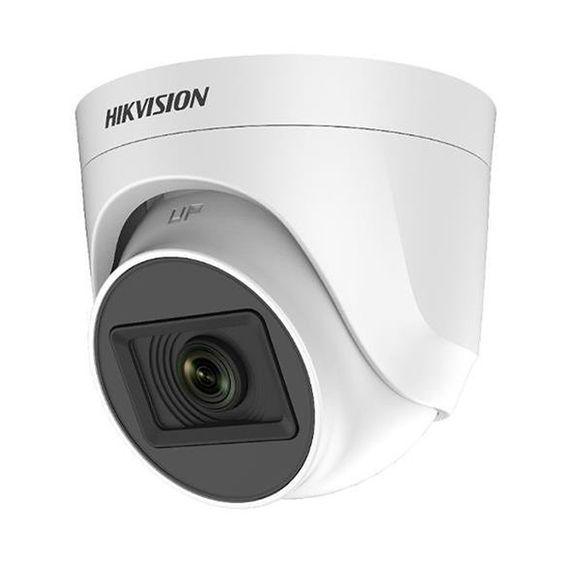

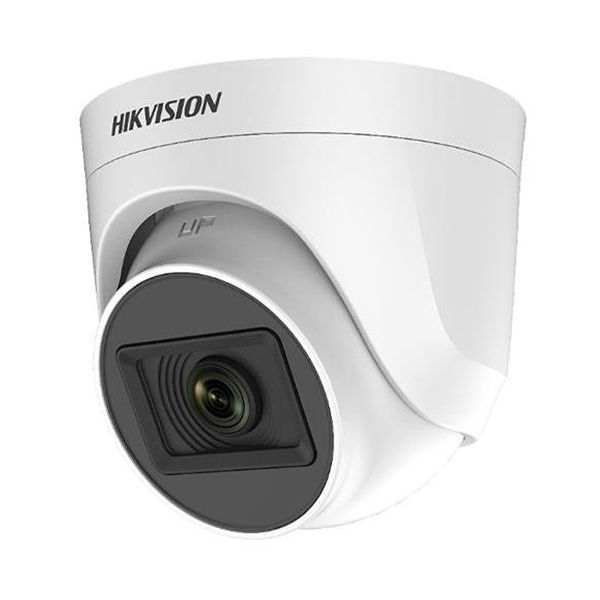

Camera Model DS-2CE76D0T-EXIPF Product Name 2MP Indoor EXIR Fixed Turret Camera Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) × 1080 (V) Frame Rate TVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC Min. Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm Fixed Lens Field Of View 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0° Lens Mount M12 Day & Night IR Cut Filter WDR (Wide Dynamic Range) Digital WDR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° Image Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto AE (Auto Exposure) Mode BLC;Global;DWDR Noise Reduction 2D DNR Language English Function Sharpness;Smart IR;Mirror;Brightness Interface Video Output Switchable TVI/AHD/CVI/CVBS General Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) Power Supply 12 VDC ± 25% Consumption Max. 3.3 W Material Plastic IR Range Up to 20 m Communication HIKVISION-C Dimension Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11") Weight Approx. 195g (0.43 lb.)
