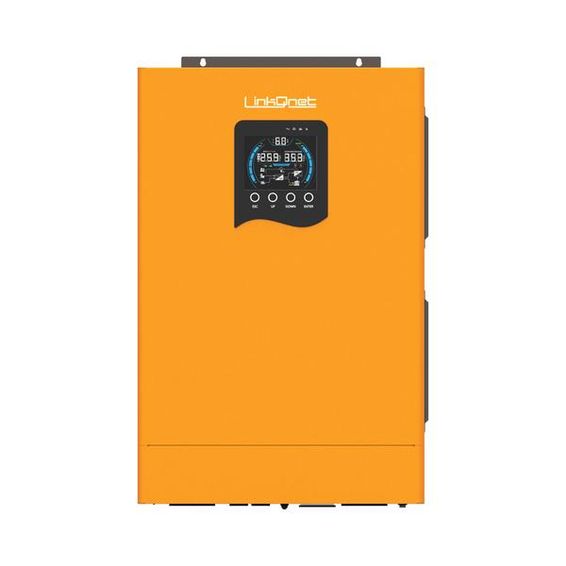

Linkqnet 10Kva Dual Output 48V Inverter
SKU
0a08f50a
Write a review
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
Main image
Click to view image in fullscreen
![]()
Product Images
Main image
Click to view image in fullscreen
![]()
Linkqnet 10Kva Dual Output 48V Inverter
SKU
0a08f50a
Write a review
Online Product | Delivery Only
Unavailable in Store
Not Eligible for In-Store Returns
R 27,366.00
No Interest No fees.
How it works:
Payflex lets you get what you need now but pay for it later! Pay over 3 pay days interest
free OR Pay in 4 instalments over 6 weeks interest free.
1
Shop Online & fill your cart
2
Select your payment plan:
3 OR 4 instalments
3 OR 4 instalments
3
Get approved.
Pay your first instalment today and get what you want now!
Pay your first instalment today and get what you want now!
4
Pay the remainder over the next 2 pay days interest free OR over 6 weeks interest free
- You must be over 18 years old.
- You must have a valid South African ID
- You must have a debit or credit card issued by MasterCard, VISA, or Amex
Still want more information? Click here
Linkqnet 10Kva Dual Output 48V Inverter
SKU 0a08f50a
R 27,366.00
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup
Standard Delivery Fees Apply
Qualifies for
Free Delivery
Free Delivery On Orders Over
R4000.00
Already own this Product?
for all to see!
LinkQnet 10kVA Dual Output 48V Inverter
FEATURES:
- Pure Sinewave Solar Inverter
- Compatible with AC Mains or Generator Inputs
- Considerable PV Input Types
- Build-In Smart Solar Charger (PWM/MPPT)
- Auto Restart while AC is Recovering
- Configurable AC/Solar Input Priority via LCD Setting
- Selectable Input Voltage Range for Home Appliances and Personal Computer Loads
- Dual PV Input Max. 36A
SPECIFICATIONS:
| LinkQnet 10kVA Dual Output 48V Inverter | |
| Rated Power | 10,000VA / 9,500W |
| Parallel Capability | Yes (optional), up to 4 units |
| Operation without Battery | No |
| Lithium Battery Communication | Yes |
| Dual Output | Yes |
| INPUT | |
| Voltage | 220/230/240VAC |
| Selectable Voltage Range | 170-264Vac (for personal computer), 90-280Vac (for home appliances) |
| Frequency Range | 50Hz/60Hz (auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Battery Mode) | (220VAC-240VAC) ±5% |
| Surge Power | 20,000VA |
| Wave Form | Pure Sinewave |
| Inverter Efficency (Peak) | 0.94 |
| Transfer Time | 10ms (typical) |
| BATTERY | |
| Normal Vottage | 48VDC |
| Floating Charge Voltage (Settable) | 55.2VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array Voltage Range | MPPT 120-450VDC |
| Number of MPP Trackers | 2 |
| Max. PV Input Power | 12,000W (6000W ×2) |
| Max. PV Input Current | 18A ×2 |
| Max. Solar Charge Current | 100A ×2 |
| Max. AC Charge Current | 200A |
| Max. Charge Current | 200A |
| COMMUNICATION | |
| Interface | USB/RS485/CAN/DRY CONTACT |
| Wi-Fi Monitoring | Yes (optional) |
| MECHANICAL SPECIFICATIONS | |
| Machine Dimensions (H × W × D) | 460 × 700 × 120mm |
| Package Dimensions (H × W × D) | 805 × 530 × 200mm |
| Net Weight | 22.85kg |
| Gross Weight | 25.05kg |
| CERTIFICATION | |
| CE | EMC: |
| EN IEC 61000-6-3:2021 | |
| EN IEC 61000-3-2:2019+A1:2021 | |
| EN 61000-3-3:2013+A2:2021/EN IEC 61000-6-1:2019 | |
| VD: | |
| EN 62109-1:2010 | |
| EN 62109-2 2011 | |
| OTHER | |
| Humidity | 5% to 95% Related Humidity (Non-condensing) |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -15°C~60°C |
| Product specifications are subject to change without further notice | |
