SKU
7097cd5a
Online Product | Delivery Only
Unavailable in Store
Product Information
Timing Tool Set Fiat 1.6 16V
Kit includes Camshaft Setting Plates, which locate at the rear of the ...
More Information
More Info about this Product
R 2,693.00
Easy Return & Refunds
Nationwide Delivery
Free Click & Collect
Pargo Pickup

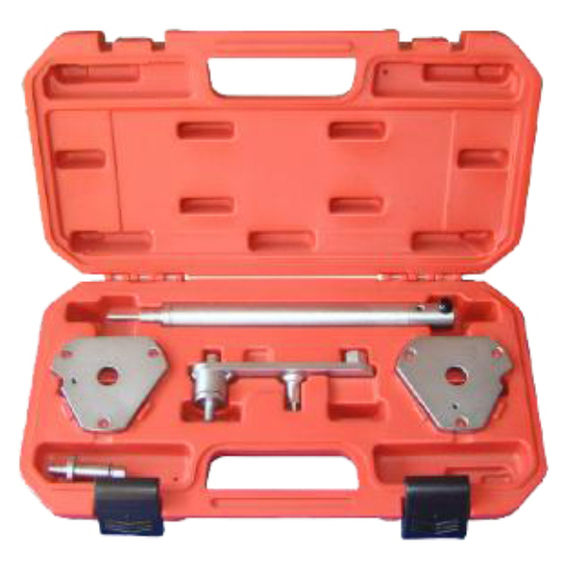

Timing Tool Set Fiat 1.6 16V
Kit includes Camshaft Setting Plates, which locate at the rear of the camshaft to 'lock' them in their timed positions, and special tensioner adjuster.
Note: TDC position on Fiat Twin Cam engines is established using TDC Positioning Tool, an associated tool, not included in the kit. It requires a suitable Dial Test Indicator. In addition, a Flywheel Holding Tool is required to 'lock' the crankshaft whilst releasing/tightening the crank pulley bolt. The crank pulley must be removed in order to remove the timing belt. The Flywheel Holding Tool used is dependent
upon model.
OEM Tools: 1.860.874.000, 1.860.876.000
Models:
Brava/Bravo (1995-2002), Doblo/Cargo (2002-2006), Marea/Weekend (1996-2003),
Multipla (1999-2011), Palio Weekend (1997-2006), Siena (1997-2003), Stilo (2001-2008)
Delta (1996-1999), Lybra (1999-2006)
Engines:
178B3.000, 182A4.00, 182A6.000 & 182B6.000.
Product label
Micro-Tec - Timing Tool Fiat 1.6 16V
SKU
7097cd5a
Pargo Available
No
Ean code
6009553694517
Gross weight (kg)
0.47
Product width in cm
95
Product depth in cm
24
Product height in cm
57
