Product Information

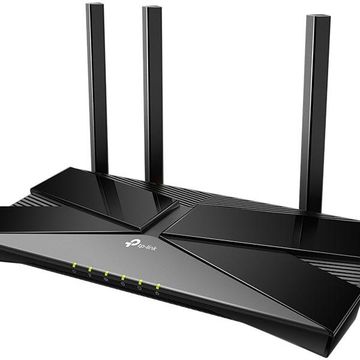

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Explore the New Era of Wi-Fi

FEATURES:

Super-Fast 1.8Gbps Wi-Fi - Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8Gbps
Connect More Devices - Communicates with more devices using OFDMA while simultaneously reducing lag
Broader Coverage - Improved algorithm, beamforming and high-performance antennas enhance the Wi-Fi coverage performance
Next-Gen Platform - The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption
Parental Controls - Enjoy the most versatile yet free parental controls features amongst all routers, including URL blocking, profile management, pausing and more
Works with Most ISPs - Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract
OneMesh - Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals
Easy Setup - Set up your router in minutes with the powerful TP-Link Tether App
Backward Compatible - Supports all previous 802.11 standards Wi-Fi devices

SPECIFICATIONS:

WIRELESS
Standards	Wi-Fi 6
	IEEE 802.11ax/ac/n/a 5GHz
	IEEE 802.11ax/n/b/g 2.4GHz
Wi-Fi Speeds	AX1800
	5GHz: 1201 Mbps (802.11ax)
	2.4GHz: 574 Mbps (802.11ax)
Wi-Fi Range	2-3 Bedroom Houses

	4× Fixed High-Performance Antennas
	Multiple antennas form a signal-boosting array to cover more directions and large areas

	Beamforming
	Concentrates wireless signal strength towards clients to expand Wi-Fi range
Wi-Fi Capacity	High

	Dual-Band
	Allocate devices to different bands for optimal performance

	OFDMA
	Simultaneously communicates with multiple Wi-Fi 6 clients

	Airtime Fairness
	Improves network efficiency by limiting excessive occupation

	4 Streams
	Connect your devices to more bandwidth
Working Modes	Router Mode
	Access Point Mode
HARDWARE
Processor	Dual-Core CPU
Ethernet Ports	1× Gigabit WAN Port
	4× Gigabit LAN Ports
Buttons	WPS/Wi-Fi Button
	Power On/Off Button
	Reset Button
Power	12 V ⎓ 1 A
SECURITY
Wi-Fi Encryption	WPA
	WPA2
	WPA3
	WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall
	Access Control
	IP & MAC Binding
	Application Layer Gateway
Guest Network	1× 5GHz Guest Network
	1× 2.4GHz Guest Network
VPN Server	OpenVPN
	PPTP
SOFTWARE
Protocols	IPv4
	IPv6
OneMesh™	OneMesh™ Supported
	Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls	URL Filtering
	Time Controls
WAN Types	Dynamic IP
	Static IP
	PPPoE
	PPTP
	L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade
	OTA Firmware Upgrade
	TP-Link ID
	DDNS
NAT Forwarding	Port Forwarding
	Port Triggering
	DMZ
	UPnP
IPTV	IGMP Proxy
	IGMP Snooping
	Bridge
	Tag VLAN
DHCP	Address Reservation
	DHCP Client List
	Server
DDNS	TP-Link
	NO-IP
	DynDNS
Management	Tether App
	Webpage
OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

	Cable or DSL Modem (if needed)

	Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0°C~40°C
	Storage Temperature: -40°C~70°C
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
TEST DATA
Wi-Fi Transmission Power	CE:
	<20dBm(2.4GHz)
	<23dBm(5.15GHz~5.25GHz)
	FCC:
	<30dBm(2.4GHz & 5.15GHz~5.825GHz)
Wi-Fi Reception Sensitivity	EU Version
	5G
	11a 6Mbps: -96dbm
	11a 54Mbps:-75dbm
	11ac VHT20_MCS0: -95dbm
	11ac VHT20_MCS8: -71dbm
	11ac VHT40_MCS0: -92dbm
	11ac VHT40_MCS9: -66dbm
	11ac VHT80_MCS0: -89dbm
	11ac VHT80_MCS9:-62dbm
	11ax HE20_MCS0:-95dbm
	11ax HE20_MCS11: -64dbm
	11ax HE40_MCS0: -92dbm
	11ax HE40_MCS11: -60dbm
	11ax HE80_MCS0: -89dbm
	11ax HE80_MCS11:-59dbm

	2.4G
	11g 6Mbps:-96dbm
	11g 54Mbps:-75dbm
	11n HT20_MCS0:-95dbm
	11n HT20_MCS7:-75dbm
	11n HT40_MCS0:-92dbm
	11n HT40_MCS7: -72dbm
	11ac VHT20_MCS0:-95dbm
	11ac VHT20_MCS8:-72dbm
	11ac VHT40_MCS0:-92dbm
	11ac VHT40_MCS9: -67dbm
	11ax HE20_MCS0:-95dbm
	11ax HE20_MCS11: -65dbm
	11ax HE40_MCS0: -92dbm
	11ax HE40_MCS11: -62dbm

	US Version
	5G
	11a 6Mbps: -96dbm
	11a 54Mbps:-75dbm
	11ac VHT20_MCS0: -95dbm
	11ac VHT20_MCS8: -71dbm
	11ac VHT40_MCS0: -92dbm
	11ac VHT40_MCS9: -66dbm
	11ac VHT80_MCS0: -89dbm
	11ac VHT40_MCS9:-62dbm
	11ax HE20_MCS0:-95dbm
	11ax HE20_MCS11: -64dbm
	11ax HE40_MCS0: -92dbm
	11ax HE40_MCS11: -60dbm
	11ax HE80_MCS0: -89dbm
	11ax HE80_MCS11:-59dbm

	2.4G
	11g 6Mbps:-96dbm
	11a 54Mbps:-75dbm
	11ac VHT20_MCS0:-95dbm
	11ac VHT20_MCS8:-72dbm
	11ac VHT40_MCS0:-92dbm
	11ac VHT40_MCS9: -67dbm
	11ax HE20_MCS0:-95dbm
	11ax HE20_MCS11: -65dbm
	11ax HE40_MCS0: -92dbm
	11ax HE40_MCS11: -62dbm
PHYSICAL
Dimensions (W×D×H)	260.2 × 135.0 × 38.6 mm
Package Contents	Wi-Fi Router Archer AX23
	Power Adapter
	RJ45 Ethernet Cable
	Quick Installation Guide
