Name: Tp-Link Er605 Omada Gigabit Vpn Router
Brand: Raion Connect
SKU: 55169c2b

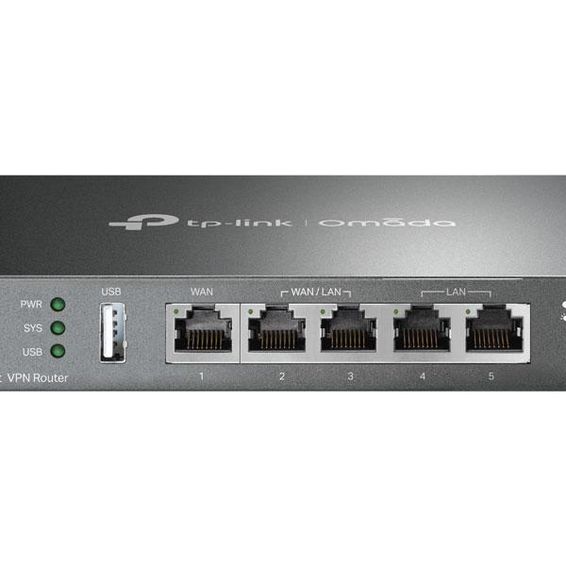

TP-Link ER605 Omada Gigabit VPN Router

Professional, Secure and Reliable Gigabit VPN Router

FEATURES:

Integrated into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for convenience and easy management
Five Gigabit Ports: High-speed wired connectivity
Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port
Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP and 16x PPTP VPN connections
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering and more security functions protect your network and data

SPECIFICATIONS:

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
	• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 1 Fixed Gigabit WAN Port
	• 2 Fixed Gigabit LAN Ports
	• 2 Changeable Gigabit WAN/LAN Ports
	• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
	• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
	• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 12V/1A DC Adapter
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )	158 x 101 x 25mm
Max Power Consumption	7.94 W
PERFORMANCE
Concurrent Session	150,000
New Sessions /Second	2,600
NAT (Static IP)	• Upload: 945.77 Mbps
	• Download: 945.56 Mbps
	• Bi-Directional: 1808.29 Mbps
NAT(DHCP)	• Upload: 945.93 Mbps
	• Download: 945.43 Mbps
	• Bi-Directional: 1808.11 Mbps
NAT(PPPoE)	• Upload: 940.44Mbps
	• Download: 940.52 Mbps
	• Bi-Directional: 1804.27 Mbps
NAT (L2TP)	• Upload: 845.64 Mbps
	• Download: 802.65 Mbps
	• Bi-Directional: 931.96 Mbps
NAT (PPTP)	• Upload: 771.66 Mbps
	• Download: 874.81 Mbps
	• Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate	• Upload/Download: 1,402,238 pps
	• Bi-Directional: 1,681,548 pps
IPsec VPN Throughput	• ESP-MD5-AES256: 171.26 Mbps
	• ESP-SHA1-AES256: 224.86 Mbps
	• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN	• 21.70 Mbps
L2TP VPN Throughput	• Unencrypted: 864.65 Mbps
	• Encrypted: 47.11 Mbps
PPTP VPN Throughput	• Unencrypted: 703.20 Mbps
	• Encrypted: 76.65 Mbps
BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP
	• PPPoE
	• PPTP
	• L2TP
	• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address
DHCP	• DHCP Server/Client
	• DHCP Address Reservation
	• Multi-net DHCP
	• Multi-IP Interfaces
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing
	• Policy Routing
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance
	• Application Optimized Routing
	• Link Backup (Timing, Failover)
	• Online Detection
NAT	• One-to-One NAT
	• Multi-Net NAT
	• Virtual Server
	• Port Triggering
	• NAT-DMZ
	• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall
	• VPN Passthrough
	• FTP/H.323/PPTP/SIP/IPsec ALG
	• DoS Defence, Ping of Death
	• Local Management
Session Limit	IP-based Session Limit
VPN
IPsec VPN	• 20 IPsec VPN Tunnels
	• LAN-to-LAN, Client-to-LAN
	• Main, Aggressive Negotiation Mode
	• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
	• IKEv1/v2
	• MD5, SHA1 Authentication Algorithm
	• NAT Traversal (NAT-T)
	• Dead Peer Detection (DPD)
	• Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server
	• 10 PPTP VPN Clients
	• 16 Tunnels
	• PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server
	• 10 L2TP VPN Clients
	• 16 Tunnels
	• L2TP over IPSec
OpenVPN	• OpenVPN Server
	• 10 OpenVPN Clients
	• 16 OpenVPN Tunnels
SECURITY
Filtering	• WEB Group Filtering
	• URL Filtering
	• Web Security
ARP Inspection	• Sending GARP Packets
	• ARP Scanning
	• IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense
	• Block TCP Scan (Stealth FIN/Xmas/Null)
	• Block Ping from WAN
Access Control	Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication	• No Authentication
	• Simple Password
	• Hotspot（Local User / Voucher / SMS / Radius）
	• External Radius Sever
	• External Portal Sever
	• Facebook
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Hardware Controller (OC300)
	• Omada Hardware Controller (OC200)
	• Omada Software Controller
	• Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface
	• Remote Management
	• Export & Import Configuration
	• SNMP v1/v2c/v3
	• Diagnostics (Ping & Traceroute)
	• NTP Synchronize
	• Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery
	• Intelligent Network Monitoring
	• Abnormal Event Warnings
	• Unified Configuration
	• Reboot Schedule
	• Captive Portal Configuration
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Gigabti VPN Router ER605
	• Power Adapter
	• RJ45 Ethernet Cable
	• Quick Installation Guide
